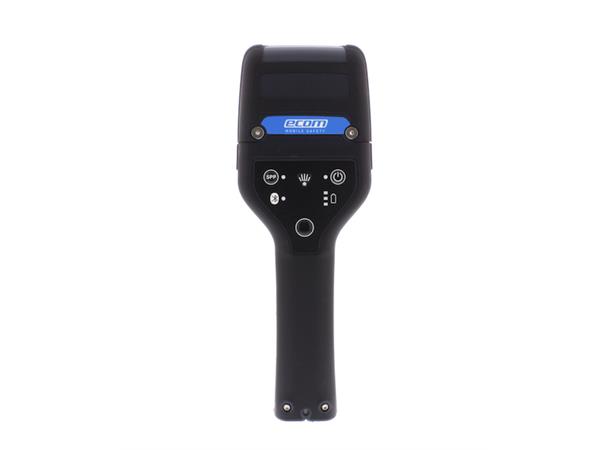

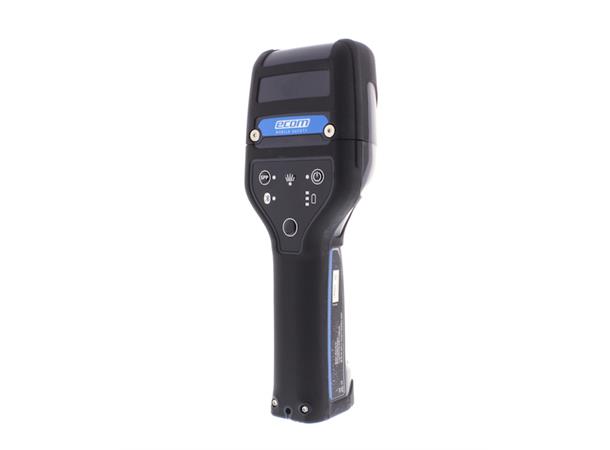

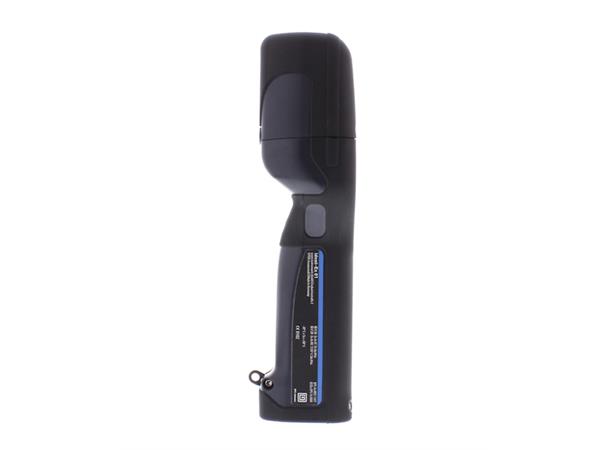

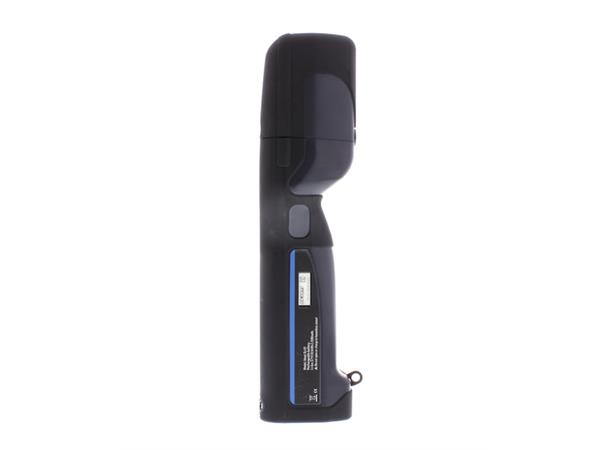

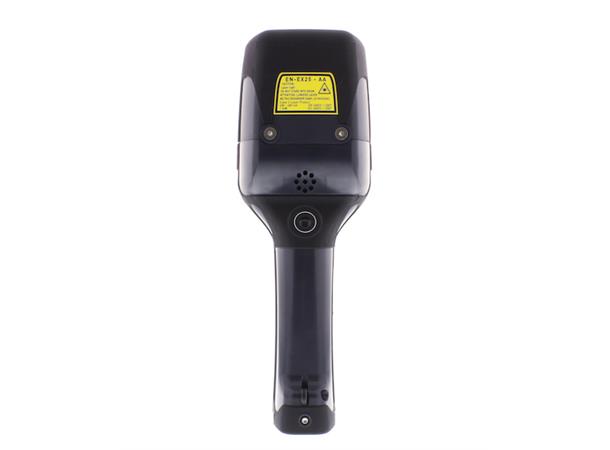

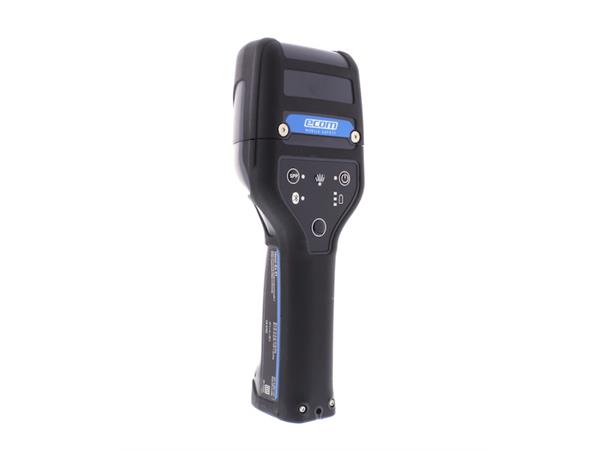

Using a unique modular design, Ident-Ex® 01 can be specifically configured to the customer‘s requirements by selecting different head modules.
When requirements change, the head module on the unit can be replaced by one of the ecom-approved Service Centers. The device can be connected via Bluetooth® to one of our base products Smart-Ex® 02 and Tab-Ex® 02 Series, and even with any generic device.
| Technical
Data |
|
| Dimensions |
With Ex-25 head module: 235 x 84
x 58mm |
| Remaining
head modules: 221 x 84 x 58mm |
| Weight |
425-560g (depends on head
module) |
| Battery |
Li-Ion rechargeable; 12+ hours; |
| 10.000+
scans with one battery charge |
| Internal
Storage |
Offline Batchmode |
| 2 MBytes, 2D QR barcodes =
500+, |
| RFID tags (ID only) = 500+ |
| Bluetooth |
Class II, up to approx. 10
meters |
| Scan
Performance |
RFID* = up to 1.5m |
| Barcode
= 15 cm to 15 m |
|
|
| *
Tag and environment dependent |
Ex Certification
ATEX
II 2G Ex ib IIC T4 Gb IP64
II 2D Ex ib IIIC T135°C Db IP 6X
IECEx
Ex ib IIC T4 Gb IP64
Ex ib IIIC T135°C Db IP 6X
NEC & CEC
Class I, II, III Div. 1 Groups A-G, T4, T135°C
Cl I Zn 1, AEx ia IIC T4 Gb IP64
Cl II Zn 21, AEx ia IIIC T135°C Db IP64
Ex ia IIC T4 Gb
Ex ia IIIC T135°C Db
