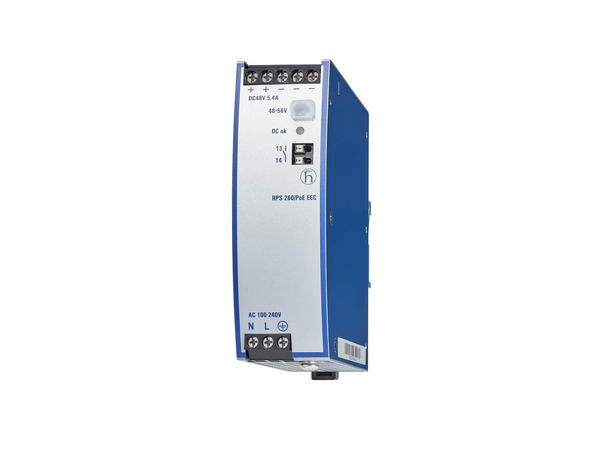

Hirschmann Power Supply RPS 260/PoE EEC 230 VAC prim., 48-56 VDC sek., 3A, 80W

Hirschmann Power Supply RPS 260/PoE EEC

230 VAC prim., 48-56 VDC sek., 3A, 80W

Varunummer: 942200001

Product description

Type:RPS 260/PoE EEC
Description:48 - 56 V DC rail power supply unit
Part Number:942200001

More Interfaces

Voltage input:1 x terminal block, 3-pin
Voltage output:1 x terminal block, 5-pin

Power requirements

Current consumption:2.32A / 120VAC 1.20A / 230VAC
Input voltage:AC 100-240V, DC 110-150V
Operating Voltage:AC 100-240V, DC 110-150V
Output current:6.0A/48V/ up to 45°C 5.15A/56V/ up to 45°C
Redundancy functions:Power supply units can be connected in parallel
Activation Current:9 A

Power Output

Output voltage:48 - 56 V DC (typ. 48 V) externally adjustable

Software

Diagnostics:LED and relay contact

Ambient conditions

MTBF:509000 h (230VAC)
Operating temperature:-25-+70 °C
Storage/transport temperature:-40-+85 °C
Relative humidity (non-condensing):5-95 %

Mechanical construction

Dimensions (WxHxD):39 mm x 124 mm x 117 mm
Weight:600 g
Mounting:DIN Rail
Protection class:IP20

Mechanical stability

IEC 60068-2-6 vibration:Operating: 2 … 500Hz 2g
IEC 60068-2-27 shock:20 g, 11 ms duration

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD):± 8 kV contact discharge; ± 15 kV air discharge
EN 61000-4-3 electromagnetic field:20 V/m (80 MHz ... 2700 MHz)
EN 61000-4-4 fast transients (burst):2 kV power lines, 2kV data line
EN 61000-4-5 surge voltage:power lines: 2 kV (line/earth), 1 kV (line/line)
EN 61000-4-6 Conducted Immunity:10 V (150 kHz .. 80 MHz)

EMC emitted immunity

EN 55032:EN 55032 Class A

Approvals

Basis Standard:CE
Safety of industrial control equipment:cUL 508
Safety of information technology equipment:cUL 60950-1
Railway norm:EN50121-4

Reliability

Guarantee:24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery:Rail power supply, Description and operating manual

Further Instructions

Product Documentation:https://www.doc.hirschmann.com
Certificates:https://www.doc.hirschmann.com/certificates.html

History

Update and Revision:Revision Number: 0.94 Revision Date: 05-07-2025
