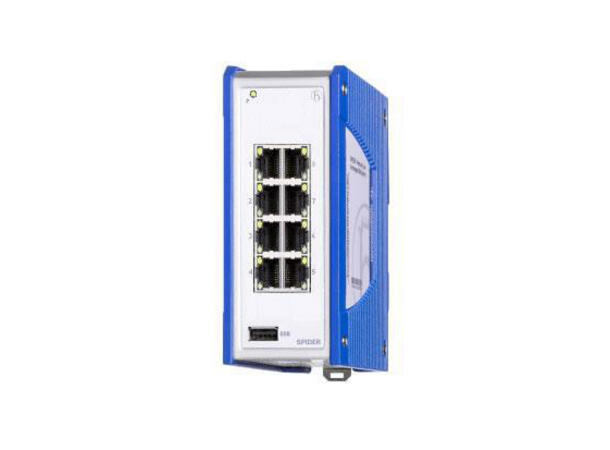

Spider III Premium Line,100mbit 8-port SPIDER-PL-20-08T1999999TWVHHHH

Spider III Premium Line,100mbit 8-port

SPIDER-PL-20-08T1999999TWVHHHH

Varunummer: 942335017
Alt. varenr: SPR20-8TX-EEC
Product description
DescriptionUnmanaged, Industrial ETHERNET Rail Switch, fanless design, store and forward switching mode, USB interface for configuration , Fast Ethernet
Port type and quantity8 x 10/100BASE-TX, TP cable, RJ45 sockets, auto-crossing, auto-negotiation, auto-polarity
More Interfaces
Power supply/signaling contact1 x plug-in terminal block, 6-pin
USB interface1 x USB for configuration
Network size - length of cable
Twisted pair (TP)0 - 100 m
Network size - cascadibility
Line - / star topologyany
Power requirements
Current consumption at 24 V DCMax. 100 mA
Operating Voltage12/24 V DC (9.6 - 32 V DC), redundant
Power consumptionMax. 2.6 W
Power output in BTU (IT)/h8.8
Diagnostics features
Diagnostic functionsLEDs (power, link status, data, data rate)
Software
SwitchingIngress Storm Protection Jumbo Frames QoS / Port Prioritization (802.1D/p)
Ambient conditions
MTBF1.206.410 h (Telcordia)
Operating temperature-40-+70 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10 - 95 %
Mechanical construction
Dimensions (WxHxD)49 x 135 x 117 mm (w/o terminal block)
Weight440 g
MountingDIN rail
Protection classIP40 metal housing
Mechanical stability
IEC 60068-2-6 vibration3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC emitted immunity
EN 55022EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN61131
Safety of industrial control equipmentcUL 61010-1/61010-2-201
Reliability
Guarantee60 months (please refer to the terms of guarantee for detailed information)
Scope of delivery and accessories
AccessoriesRail Power Supply RPS 30/80 EEC/120 EEC (CC), Wall mounting plate for DIN rail mounting (width 40/70 mm)
Scope of deliveryDevice, terminal block, safety instruction
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
