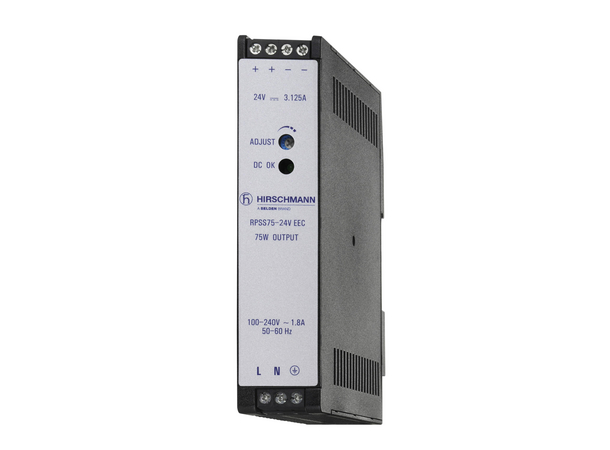

Hirschmann Power Supply RPS S75 EEC 230 VAC prim., 24 VDC sek., 3A, 75W

Hirschmann Power Supply RPS S75 EEC

230 VAC prim., 24 VDC sek., 3A, 75W

Varunummer: 942343075

Product description

Type:RPSS75-24V EEC
Part Number:942343075

More Interfaces

Voltage input:1 x terminal block, 3-pin
Voltage output:1 x terminal block, 4-pin

Power requirements

Current consumption:max. 1.4 A at 115 V AC, 0.9 A at 230 V AC
Input voltage:100-240 V AC
Operating Voltage:85-264 V AC
Output current:3,125 A
Activation Current:50 A at 230 V AC

Power Output

Output voltage:24 V DC

Ambient conditions

MTBF (Telecordia SR-332 Issue 3) @ 25°C:700000 hrs.
Operating temperature:-20-+70 °C
Note:derating starting at 40°C with 115 V ACbr derating starting at 50°C with 230 V AC
Storage/transport temperature:-40-+85 °C
Relative humidity (non-condensing):5-95 %

Mechanical construction

Dimensions (WxHxD):27 mm x 123,6 mm x 102 mm
Weight:220 g
Mounting:DIN Rail
Protection class:IP20

Mechanical stability

IEC 60068-2-27 shock:10 g, 11 ms duration

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD):± 8 kV contact discharge; ± 15 kV air discharge
EN 61000-4-5 surge voltage:power lines: 4 kV (line/earth), 2 kV (line/line)

Approvals

Basis Standard:CE, UKCA, RCM, BIS
Safety of industrial control equipment:UL 62368, UL 61010-1
Transportation:EN50121-4

Reliability

Guarantee:24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery:Rail power supply, Description and operating manual

Further Instructions

Certificates:https://www.doc.hirschmann.com/certificates.html

History

Update and Revision:Revision Number: 0.30 Revision Date: 07-29-2025
