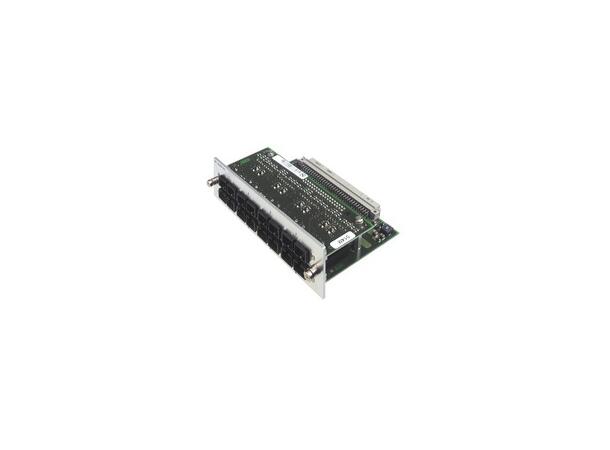

Hirschmann M1-8MM-SC module 8x100Mb SC-D
Hirschmann M1-8MM-SC module 8x100Mb SC-D
Media Module for GRS103 switch
Varunummer:
943970101
Förfrågan
Beskrivning
Dokumentasjon
Product description
Description:
8 x 100BaseFX Multimode DSC port media module for modular, managed, Industrial Workgroup Switch MACH102
Part Number:
943970101
Network size - length of cable
Multimode fiber (MM) 50/125 µm:
0 - 5000 m (Link Budget at 1310 nm = 0 - 8 dB; A=1 dB/km; BLP = 800 MHz*km)
Multimode fiber (MM) 62.5/125 µm:
0 - 4000 m (Link Budget at 1310 nm = 0 - 11 dB; A = 1 dB/km; BLP = 500 MHz*km)
Power requirements
Power consumption:
10 W
Power output in BTU (IT)/h:
34
Ambient conditions
MTBF (Telecordia SR-332 Issue 3) @ 25°C:
1 224 826 h
Operating temperature:
0-50 °C
Storage/transport temperature:
-20-+85 °C
Relative humidity (non-condensing):
10-95 %
Mechanical construction
Dimensions (WxHxD):
138 mm x 90 mm x 42mm
Weight:
210 g
Mounting:
Media Module
Protection class:
IP20
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD):
4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field:
10 V/m (80-2700 MHz)
EN 61000-4-4 fast transients (burst):
2 kV power line, 4 kV data line
EN 61000-4-5 surge voltage:
power line: 2 kV (line/earth), 1 kV (line/line), 4 kV data line
EN 61000-4-6 Conducted Immunity:
10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55022:
EN 55022 Class A
FCC CFR47 Part 15:
FCC 47CFR Part 15, Class A
Approvals
Safety of industrial control equipment:
cUL 508
Safety of information technology equipment:
cUL 60950-1
Reliability
Guarantee:
60 months (please refer to the
a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf"
terms of guarantee
/a
for detailed information)
Scope of delivery and accessories
Scope of delivery:
Media module, user manual
Further Instructions
Product Documentation:
https://www.doc.hirschmann.com
Certificates:
https://www.doc.hirschmann.com/certificates.html
History
Update and Revision:
Revision Number: 0.129 Revision Date: 04-29-2025
