Hirschmann Greyhound GRS105
GRS105-6F8F16TCLLY9HHSE2A99XX.X.XX
Product description
Description
GREYHOUND 105/106 Series, Managed Industrial Switch, fanless design, 19" rack mount, according to IEEE 802.3, 6x1/2.5GE +8xGE +16xGE
Software Version
HiOS 10.3.01
Port Type and Quantity
30 Ports in total, 6x GE/2.5GE SFP slot + 8x GE SFP slot + 16x FE/GE TX ports
More Interfaces
Power supply/signaling contact
Power supply input 1: 2 pin plug-in terminal block, Signal contact: 2 pin plug-in terminal block , Power supply input 2: 2 pin plug-in terminal block
SD-card slot
1 x SD card slot to connect the auto configuration adapter ACA31
USB-C
1 x USB-C (client) for local management
Network size - length of cable
Twisted pair (TP)
0-100 m
Single mode fiber (SM) 9/125 µm
see SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver)
see SFP modules
Multimode fiber (MM) 50/125 µm
see SFP modules
Multimode fiber (MM) 62.5/125 µm
see SFP modules
Network size - cascadibility
Line - / star topology
any
Power requirements
Operating Voltage
Power supply input 1: 24 - 48 VDC , Power supply input 2: 24 - 48 VDC
Power consumption
Basic unit with one power supply max. 35W
Power output in BTU (IT)/h
max. 120
Software
Switching
CoS Queue Management, Double VLAN Tagging (QinQ), Egress Interface Shaping, Fast Aging, Flow Control (802.3X), Forward unknown multicast to query ports, GARP Multicast Registration Protocol (GMRP), GARP VLAN Registration Protocol (GVRP), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, IP Egress DiffServ Classification and Policing, IP Ingress DiffServ Classification and Policing, IP subnet-based VLAN, Jumbo Frames, MAC-based VLAN, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), Protocol-based VLAN, QoS / Port Prioritization (802.1D/p), Queue-Shaping / Max. Queue Bandwidth, Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
Redundancy
HIPER-Ring (Ring Switch), HIPER-Ring over Link Aggregation, Link Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2), MRP over Link Aggregation, MSTP (802.1Q), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, Sub Ring Manager
Management
DNS Client, Dual Software Image Support, TFTP, SFTP, SCP, LLDP (802.1AB), LLDP-MED, SSHv2, OPC-UA Server, HTTP, HTTPS, IPv6 Management, Service Discovery (bonjour), ITxPT Module Inventory, Traps, SNMPv1/v2 Read-Only, SNMP v1/v2/v3, SNMPv3 Traps, Telnet
Diagnostics
Management Address Conflict Detection, MAC Notification, Loop Protection, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Email Notification, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, RSPAN, SFLOW, VLAN Mirroring, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump,
Configuration
Automatic Configuration Undo (roll-back), Configuration Fingerprint, XML-based Configuration File, Backup config on a remote server when saving, Clear config but keep IP settings, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), HiDiscovery, DHCP Relay with Option 82, Auto Disable, USB-C Management support, Command Line Interface (CLI), CLI Scripting, CLI script handling over ENVM at boot, Full-featured MIB Support, Context-sensitive Help, HTML5 based Management, Interface Shutdown via Tracking
Security
Signed Firmware Images, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, RADIUS Policy Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Format options for MAC authentication bypass, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Denial-of-Service Prevention, RADIUS Client, LDAP, Ingress MAC-based ACL, Egress MAC-based ACL, Ingress IPv4-based ACL, Egress IPv4-based ACL, Time-based ACL, VLAN-based ACL, Ingress VLAN-based ACL, Egress VLAN-based ACL, ACL Flow-based Limiting, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, Secure Boot, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Time synchronisation
PTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, BC with Up to 8 Sync / s , 802.1AS, 802.1AS-2020, Buffered Real Time Clock, SNTP Client, SNTP Server
Industrial Profiles
EtherNet/IP Protocol, Modbus TCP, PROFINET Protocol
Miscellaneous
Manual Cable Crossing, Port Power Down
Ambient conditions
Operating temperature
-10 - +60
Minimum Storage Temperature
-20 - +70 °C
Relative humidity (non-condensing)
5-90 %
Protective paint on PCB
Yes (conformal coating)
Mechanical construction
Dimensions (WxHxD)
444 x 44 x 355 mm
Weight
5 kg estimated
Mount Type
Rack mount
Protection class
IP30
Mechanical stability
IEC 60068-2-6 vibration
3.5 mm, 5 Hz – 8.4 Hz, 10 cycles, 1 octave/min.; 1 g, 8.4 Hz-200 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock
15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)
6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field
20 V/m (800-1000 MHz), 10V/m (80-800 MHz ; 1000-6000 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)
2 kV power line, 4 kV data line STP, 2 kV data line UTP
EN 61000-4-5 surge voltage
power line: 2 kV (line/earth) and 1 kV (line/line); data line: 2 kV
EN 61000-4-6 Conducted Immunity
10 V (150 kHz - 80 MHz)
EMC emitted immunity
EN 55032
EN 55032 Class A
Approvals
Basis Standard
CE, FCC, EN61131
Safety of information technology equipment
EN62368, cUL62368
Reliability
Guarantee
60 months (please refer to the <a href="https://assets.belden.com/m/1424ddb7a3280e7a/original/Hirschmann-Automation-and-Control-GmbH-Terms-of-Guarantee.pdf"
terms of guarantee </a
for detailed information)
Scope of delivery and accessories
Accessories to Order Separately
Network Management Industrial HiVision, ACA31, SFP/SFP+
Scope of delivery
Device, General safety instructions
Tilbehør
Alternativer
Artikler
Antall artikler funnet:
Kundcenter
Til norsk shop
Logga in
Inga varor i varukorgen
Ingen varer i ordreboka
produkt
produkter
(
)
(
)
(
)
Checka ut
×
Aktiv leveringsdato
Leveringsdatoer
Kundvagn
varor i kundvagnen
Klikk her for å se alle
Handlevognen er tom.
Søk
Industriell IT
Her er du nå:
Adeptor
>
Industriell IT
>
Nätverk Industri
>
Greyhound
>
GRS 105
>

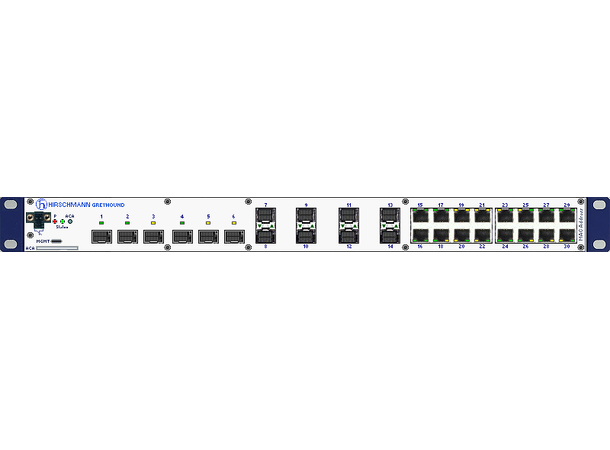

Hirschmann Greyhound GRS105
