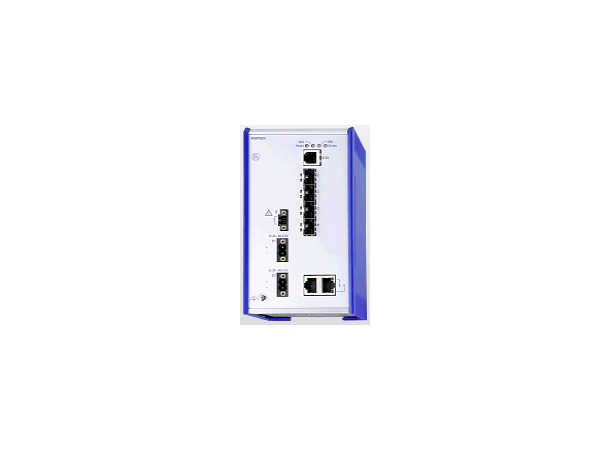

RSPS Switch 4xSFP, 2xRJ45, 2S-sw RSPS25-06002Z6YT-SCCV9HHE2SXX.X

RSPS Switch 4xSFP, 2xRJ45, 2S-sw

RSPS25-06002Z6YT-SCCV9HHE2SXX.X

Varunummer: RSPS25-06002Z6YT-02
Product description
DescriptionManaged, Industrial Switch DIN Rail, fanless design, Fast Ethernet type Enhanced Redundancy (PRP, Fast MRP, HSR) HiOS Layer 2 Standard
Software VersionHiOS 07.1.08
Configurator Part Number942094999
Port Type and Quantity6 Ports in total, 4 x SFP slots (100 Mbit/s); 2 x Twisted Pair / RJ45 (10/100 Mbit/s)
More Interfaces
Power supply/signaling contact2 x plug-in terminal block, 2-pin, 1 x plug-in terminal block, 2-pin
V.24 interface1 x RJ11 socket
SD-card slot1 x SD card slot to connect the auto configuration adapter ACA31
Network size - length of cable
Twisted pair (TP)0-100 m
Single mode fiber (SM) 9/125 µmsee SFP fiber module M-Fast SFP-xx
Single mode fiber (LH) 9/125 µm (long haul transceiver)see SFP fiber module M-Fast SFP-xx
Multimode fiber (MM) 50/125 µmsee SFP fiber module M-Fast SFP-xx
Multimode fiber (MM) 62.5/125 µmsee SFP fiber module M-Fast SFP-xx
Network size - cascadibility
Line - / star topologyany
Power requirements
Operating Voltage2 x 24/36/48 V DC (18 -60 V DC)
Power Consumption12 W
Power output in BTU (IT)/h41
Software
SwitchingCoS Queue Management, Egress Interface Shaping, Fast Aging, Flow Control (802.3X), IGMP Snooping/Querier per VLAN (v1/v2/v3), Independent VLAN Learning, Ingress Storm Protection, Interface Trust Mode, Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP), Multiple VLAN Registration Protocol (MVRP), QoS / Port Prioritization (802.1D/p), Static Unicast/Multicast Address Entries, TOS/DSCP Prioritization, Unknown Multicast Filtering, VLAN (802.1Q), VLAN Unaware Mode, Voice VLAN
RedundancyLink Aggregation with LACP, Link Backup, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Client, Media Redundancy Protocol (MRP) (IEC62439-2) - Redundancy Manager, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, Fast MRP (IEC62439-2), High Availability Seamless Redundancy Protocol (HSR) (IEC62439-3), Parallel Redundancy Protocol (PRP) (IEC62439-3)
ManagementTFTP, SFTP. SCP. LLDP (802.1AB), LLDP-MED, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet
DiagnosticsManagement Address Conflict Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Persistent Logging on ACA, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, SFP Management, Configuration Check Dialog, Switch Dump, Snapshot Configuration Feature
ConfigurationAutomatic Configuration Undo (roll-back), Configuration Fingerprint, Text-based Configuration File (XML), BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, AutoConfiguration Adapter ACA31 (SD card), HiDiscovery, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
SecurityMAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN Assignment, Denial-of-Service Prevention, Access to Management restricted by VLAN, Device Security Indication, Audit Trail, CLI Logging, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, Configurable Password Policy, Configurable Number of Login Attempts, SNMP Logging, Multiple Privilege Levels, Local User Management, Remote Authentication via RADIUS, User Account Locking, Password change on first login
Time synchronisationPTPv2 Transparent Clock two-step, PTPv2 Boundary Clock, Buffered Real Time Clock, SNTP Client, SNTP Server
Industrial ProfilesEtherNet/IP Protocol, IEC61850 Protocol (MMS Server, Switch Model), ModbusTCP, PROFINET IO Protocol
MiscellaneousManual Cable Crossing, Port Power Down
Ambient conditions
Operating temperature0-+60 °C
Minimum Storage Temperature-40-+70 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)90 mm x 164 mm x 120 mm
Weight1180 g
Mount TypeDIN rail
IP Protection RatingIP20
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
EN 55022EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN61131
SubstationIEC61850-3, IEEE1613
Reliability
Guarantee60 months (please refer to the ""terms of guarantee or detailed information)
Scope of delivery and accessories
AccessoriesRail power supply RPS 15/30/80/120, Terminal cable, Network management Industrial HiVision, Auto-configuration adpater ACA31, 19" installation frame
Scope of deliveryDevice, terminal blocks , General safety instructions
