Hawke 501/453/U " Alt. Ring" B-M25 Brass Exde (11.1-19.7/16.9-26.0) Hawke 501/453/U " Alt. Ring" B-M25 Brass Exde (11.1-19.7/16.9-26.0)

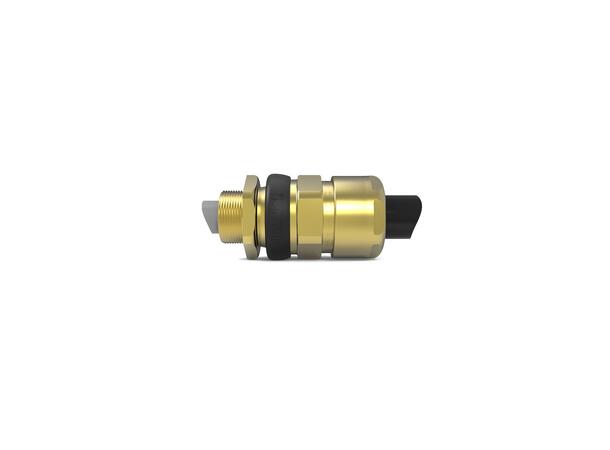

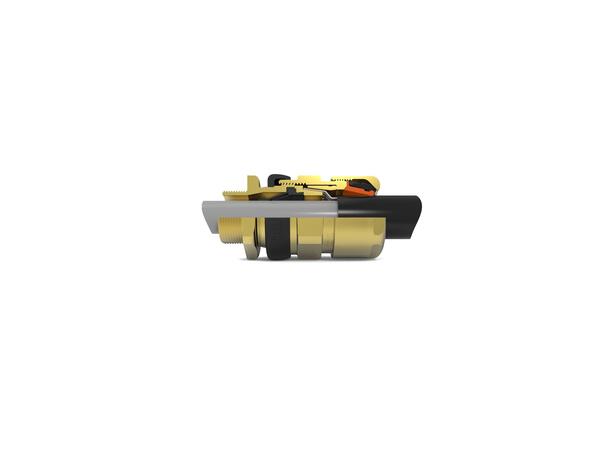

Hawke 501/453/U " Alt. Ring" B-M25 Brass

Exde (11.1-19.7/16.9-26.0)

Varunummer: 501/453/U/R-BM25BR

Product Details

General

Ambient Temp. Range-60°C to +80 °C
ApplicationSuitable for use in Zone 1, Zone 2, Zone 21 and Zone 22
Ingress Protection
  • IP66
  • IP67
  • IP69
  • IP68
MaterialBrass, NP Brass or Stainless Steel
Operating Temperature-60°C to +80 °C
SeriesGroup II Cable Glands

Certifications and Compliance

ATEX File Number
CSA File Number
CertificationIEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7, IEC/EN 60079-1 and IEC/EN 60079-31
Certified Listed
  • ATEX
  • CSA
  • IECEx
  • UL
Hazardous Rating(s)
  • Flameproof Exdb IIC Gb, Increased Safety Exeb IIC Gb, Dust Extb IIIC Db Ex II 2 GD
  • Deluge Protection to DTS01
Nema Rating4X
UL File NumberUL 60079-0, UL 60079-1, UL 60079-7
