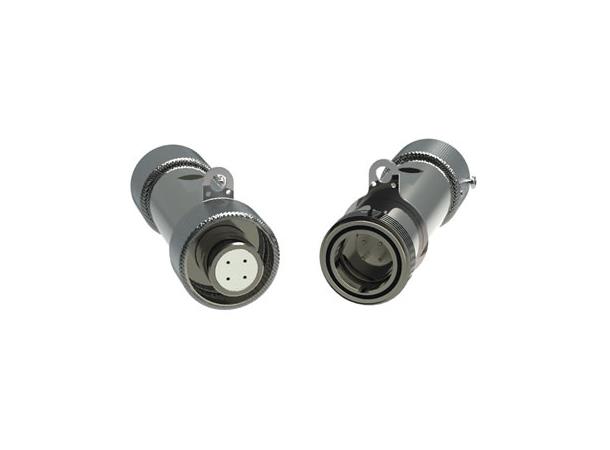

ControlEx 32 Bulkh. 3x16  Pin Exd32-S-BR-V-3x16-P-X-FRC-A-1

ControlEx 32 Bulkh. 3x16 Pin

Exd32-S-BR-V-3x16-P-X-FRC-A-1

Varunummer: Exd32/BR-3IPXXRXXA1

ControlEx SELECT CODE DESCRIPTION EXAMPLE CODE
PROTECTION Exd Flameproof

Exd

SHELL SIZE 16 16

32

25 25
32 32
40 40
50 50
63 63
MATERIAL S Stainless Steel

S

CONNECTOR STYLE CP Connector Plug

CP

CR Connector Receptacle
BR Bulkhead Receptacle
KEYING SYSTEM V Variable Keyway (All)

V

F Fixed Keyway
(Only available if purchasing terminated)
NUMBER OF CONTACTS See Insert Selection Chart

19

X No Insert
CONTACT SIZE See Insert Selection Chart

1.5

INSERT TYPE P Pin

S

S Socket
X No Insert
TERMINATION STYLE S Solder*

C

* Note: Inserts for use in Bulkhead receptacles are solder
termination only for contact sizes of 6mm2 and above.
C Crimp*
X No Insert
FLANGE TYPE ? FL Mounting Flange

FL

Note: CP or CR only - one per mating pair. SF Split Flange (can be retro fitted after termination)
CAP TYPE FRC Flameproof Receptacle Cap

FPC

FPC Flameproof Plug Cap
PRC Plastic Receptacle Cap
PPC Plastic Plug Cap
LOCKING PIN ? P Locking Pin (only one required per mating pair)

P

ALTERNATIVE CABLE GLAND ENTRY ? R20 Reduced Cable Gland Entry M20 (Ex 25 only)

R25

R25 Reduced Cable Gland Entry M25 (Ex 40 & Ex 32 only)
R32 Reduced Cable Gland Entry M32 (Ex 50 & Ex 40 only)
R40 Reduced Cable Gland Entry M40 (Ex 63 & Ex 50 only)
R50 Reduced Cable Gland Entry M50 (Ex 63 only)
CERTIFICATION A ATEX/IECEx/EAC/INMETRO

A

N ATEX/IECEx/EAC/INMETRO /NEC 505
Voltage reduced to 600V
AMBIENT RATING AND TEMPERATURE CLASS 1 T5 +40°C Standard

1

T5 +40°C will be supplied as standard if alternative not
specified.
2 T5 +50°C
3 T5 +60°C
4 T6 +40°C
5 T6 +50°C
6 T6 +60°C
TERMINATION ? T Termination Required

T

?If not required, omit selection character from order code.
