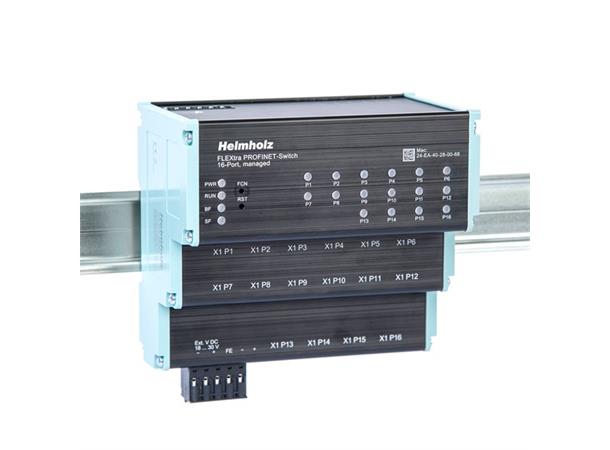

FLEXtra PROFINET switch 16-port 16xRJ45, managed, 10/100/1000 Mbit

FLEXtra PROFINET switch 16-port

16xRJ45, managed, 10/100/1000 Mbit

Varunummer: 700-855-16P01

The managed FLEXtra PROFINET switch 16 port can be used to network PROFINET components with 100 Mbps as well as Ethernet nodes with up to 1000 Mbps. Thus, communication from the control level and the machine or the mixing of Ethernet and PROFINET components in one switch is possible. PROFINET prioritization according to Conformance Class B of the machine components is always guaranteed.
One of the most important functions of a PROFINET switch is the prioritization of PROFINET telegram traffic in the machine network. The managed switch can distinguish whether the telegram is a web request, an FTP file transfer, a media stream, or a PROFINET telegram. In the event of a high transmission load, the important telegrams can thus be prioritized to prevent telegram losses of the machine components. The supported PROFINET protocols, such as LLDP, DCP or diagnostic alarms, can be easily parameterized and managed.
In addition to PROFINET, functions such as SNMP, NTP, VLAN, port mirroring, QoS/CoS mapping and extensive statistics are available for managing the Ethernet network. If required, the configuration can be saved on an SD card or loaded for commissioning.
The practical design with the intelligent arrangement of the Ethernet sockets saves space in the control cabinet. The status LEDs on the top of the FLEXtra PROFINET switch, which are always clearly visible, allow for easy diagnostics even when fully wired.
In addition, the FLEXtra PROFINET switch supports port control via inputs and port status indication via outputs. Bits in the PROFINET-IO image of the switch can be used as inputs and outputs as well as 4 digital inputs and 2 digital outputs with 24V. The assignment and the function of the inputs and outputs can be configured via the GSDML file.

Technical advantages when using a PROFINET-Switch

  • Prioritizing of PROFINET frames
  • Assignment of a configuration via the device name
  • Neighborhood detection
  • Device exchange without programming device
  • Ring redundancy
  • Each port can be activated or deactivated
  • Diagnostic messages for network problems
  • Identification and maintenance data
