Transition 10 Gigabit SFP+ modul, 10km 10GBase-LR/LW, SM 1310nm, LC

Transition 10 Gigabit SFP+ modul, 10km

10GBase-LR/LW, SM 1310nm, LC

Varunummer: TN-10GSFP-LR1

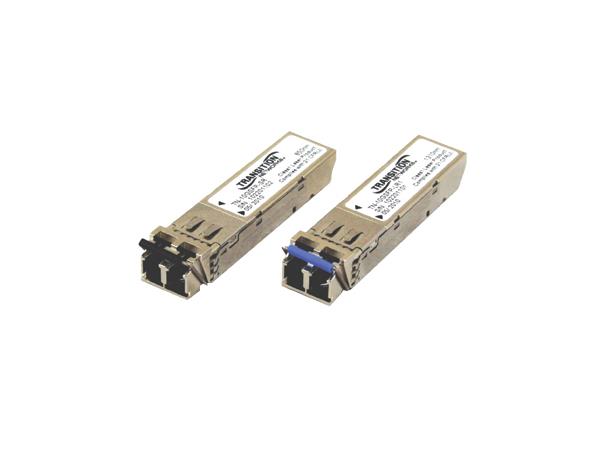

Transition Networks 10GBase SFP+ Modul
10GBase SFP+ MSA Compatible Duplex LC, 10 km

  • SFP+ Optical Transceiver with
  • Duplex LC connector
  • 10G small Form-Factor Pluggable (SFP+) MSA compatible
  • SFF-8472 Digital Diagnostic Function (DMI)
  • Single +3.3 V Power Supply
  • Up to 10.5 Gbps bidirectional data links
  • RoHS Compliant (all models)
  • 0 to 70°C Operating Temperature range
  • -40 to 85°C Storage Temperature range
  • Class 1 Laser International Safety

Specifications
Standards: IEEE802.3ae
Data Rates: 10.3 Gbps
Dimensions: Width: 0.52 [13 mm]
Depth: 2.2 [56 mm]
Height: 0.33 [8 mm]
Power Supply +3.3V
Operating Temp 0°C - 70°C (32°F to 158°F)
Storage Temp -40°C - 85°C (-40°F to 185°F)
Compliance IEC-60825; FAD 21; CFR 1040.10 and 1040.11
Warranty Lifetime
