Auteldac 6, 18 button ATEX/IECEx, VoIP Auteldac 6, 18 button ATEX/IECEx, VoIP

Auteldac 6, 18 button

ATEX/IECEx, VoIP

Varunummer: 212-02-6008

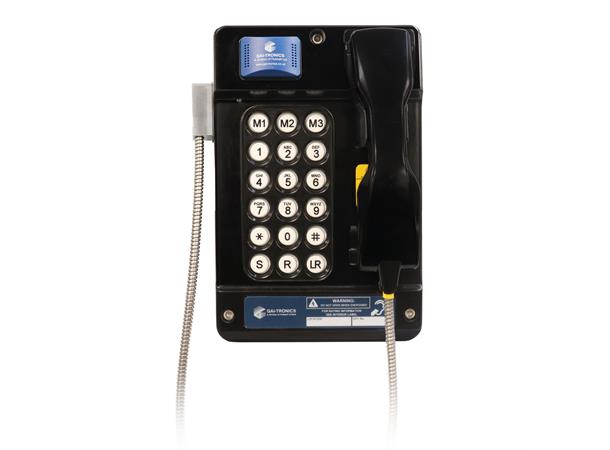

Auteldac 6



Auteldac 6 is an ATEX and IECEx Zone 1 & Zone 21 certified VoIP telephone, providing simple network connectivity extending SIP access to hazardous area industrial atmospheres and environmental extremes.



Features include:

IEC Ex / ATEX certified for safe operation in hazardous areas

Carbon loaded glass filled polyester body - rugged and corrosion free.

Weather resistant up to IP66

Certified for use in ambient temperatures of -40°C to +60°C (NB refer to certification details)

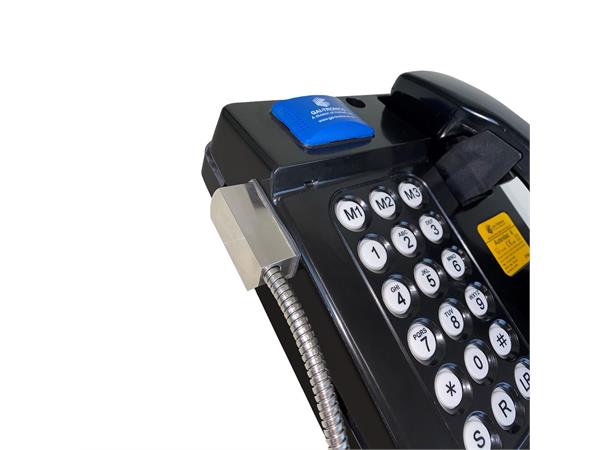

Rugged handset with curly cord or armoured stainless steel cord.

Programmable, volt-free contact output

Automatic outgoing call diversion (memory list)

Real-time alarm reporting via SNMP

Power over Ethernet 802.3af compatible (spare pair only)

Configurable via web page, SNMP or configuration file



Technical Data
Enclosure Black carbon loaded glass-filled polyester
Handset PC/ABS handset
Polyurethane coiled or spiral 316 stainless steel cord.
Cord length options:
• Standard coiled cord length 320mm/1.25ft extends
  to 1.5m/5ft
• Extended coiled cord length 1.5m/5ft extends to 3m/10ft
• Standard stainless cord length 745mm/29in
• Extended stainless cord length 3m/10ft
Keypad Weather-sealed tactile keypad
Certified operating temperature -40°C (F) to +60°C (+140°F)
IP Protection IP66
Connection type Screw Terminal up to 4mm2 / 11AWG
Network Minimum Requirements 10/100BaseT
Power Supply a) External 24V min, 48V max dc or
b) IEEE Compliant Power-Over-Ethernet (PoE).
Alternative b) power on spare pairs only, not data pair.
Draws up to 3.5W.
Call Setup Session Initiation Protocol (SIP) (RFC 3261 compliant)
Configuration Via configuration file or on-board password
protected web page server. Static IP address or DHCP
provisioning.
Monitoring Automatic fault reporting via Syslog messaging
or SNMP
Audio Path Testing Allows remote testing of handsets, to verify that a phone is functioning acoustically. Can be run on demand or on a scheduled basis, reporting its results via Syslog and/or SNMP
External I/O Single Relay contact pair rated for external beacon or sounder. User configurable activation e.g. on ringing cadence. Contact rating 5Amps @250 V ac max.
Ringing User configurable output level via configuration file or web page, up to 90db @ 1 metre typical.
Weight Approx. 3.5 kg (7.7lbs)
