Hirschmann OpenBAT-R trådløs AP/klient

BAT-REUW99AK999BO799S9999H

Varunummer: BAT-REUW99AK999BO701

Product description

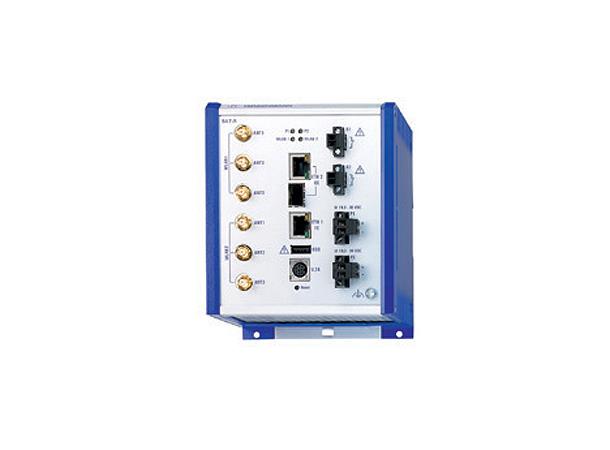

DescriptionRugged wireless LAN access point and/or client for use in industrial environments. Robust metal housing for mounting on DIN rails.
Port type and quantityRJ45 LAN combo port: 10/100/1000BASE-TX, 1000BASE-SX/LX
Radio protocolIEEE802.11a/b/g/h/n WLAN interface as per IEEE802.11n, up to 450MBit/s gross bandwidth.
TypeBAT-REUW99AK999BO799S9999H09.12.5500
Order No.BAT-REUW99AK999BO799S9999H09.12.5500
Supported Radio Standards1st WLAN interface as per IEEE802.11n

More Interfaces

EthernetRJ45 LAN combo-port: 10/100/1000BASE-TX, 1000BASE-SX/LX
Power supply/signaling contact1 x terminal block, 2-pin;
V.24 interface
  • Configuration interface (COM)
  • AT modem connection
  • For automatic P2P connections verified over V.24 (train carriage coupling)
  • Serial gateway for WLAN or virtual COM interface via WLAN
USB interface1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Radio technology

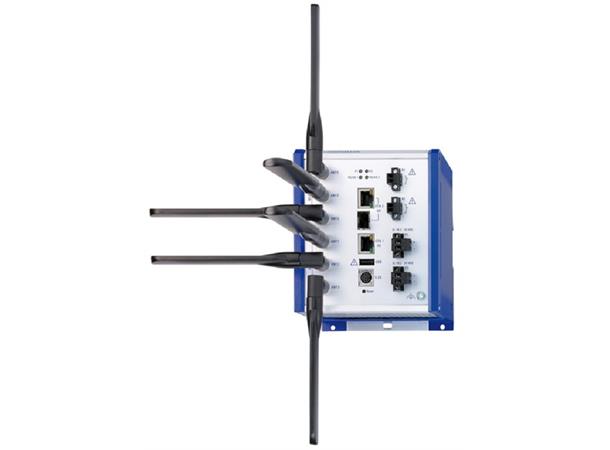

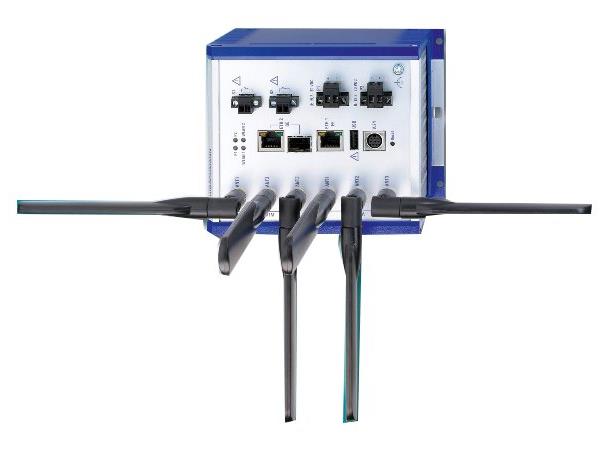

Antenna connectorReverse SMA socket, 3 x MiMo antenna connectors
RangeDepends on type of antenna, frequency range and data rate. Use the BAT-Planner for planning your wireless network.
Frequency bandSupports 2.4 GHz and 5 GHz: 2400 -2483.5 MHz (ISM) and 5170 - 5850 MHz
Modulation22M0F7D (DSSS/OFDM) at 2.4 GHz20M0G7D (OFDM) at 5 GHz
EncryptionIEEE 802.11i / WPA2 with passphrase or 802.1x and hardware-accelerated AES, closed network, WEP64, WEP128, WEP152, user authentication, 802.1x /EAP, LEPS, WPA1/TKIP. Please refer to the HiLCOS data sheet for further information.

Power requirements

Operating voltageVoltage Range 1: 60/120/250 VDC (48-320 VDC) / 110/230 VAC (90-265 VAC)
Current consumption12.95 W

Ambient conditions

Operating temperature0 ºC ... 60 ºC
NoteTemperature of the surrounding air.
Storage/transport temperature-40 ºC ... 85 ºC
Relative humidity (non-condensing)10 % ... 95 %
MTBF58 years (MIL-HDBK-217F)
Protective paint on PCBNo

Mechanical construction

Dimensions (W x H x D)150 mm x 136 mm x 115 mm
MountingDIN Rail
Protection classIP30

Approvals

Safety of information technology equipmentEN 60950-1 ,
RadioR&TTE; EN 300 328 (2.4GHz), EN 301 893 (5 GHz); EN 301 489-1, EN 301 489-17

Scope of delivery and accessories

Scope of deliveryDevice, Installation user manual, CD/DVD with manual, 3 x per WLAN module 3-dBi dipole dual-band antennas, 2 × 2-pin terminal block for signal contact, 1 × 2-pin terminal block for the working voltage.
Accessories to order separatelyExternal antennas; external surge protection; cables 2 m, 5 m, 15 m. Some countries does not allow all Antennas. For more information please have a look into the Hirschmann Antenna Guide; wall mount plate
