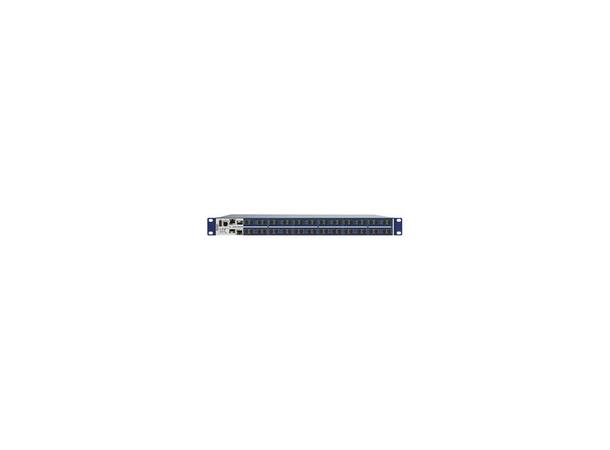

MACH 1000 Switch for Substation

MAR1030-OTTTTTTTTTTTTTMMMMMMMMMMMMUMMHPH

Varunummer: MAR1030-4O12xT12xMMU
Product description
Description
Industrial managed Fast/Gigabit Ethernet Switch, 19" rack mount, fanless Design, according to IEEE 802.3, store-and-forward-switching
Port type and quantity
Gigabit-Ethernet ports in total: 4; 2 x 10/100/1000BASE TX RJ45 plus 2 x GE-SFP slot; Fast-Ethernet ports in total: 24 x ports in total; 12 x Twisted Pair, 12 x Multimode SC,
Type
MAR1030-OTTTTTTTTTTTTTMMMMMMMMMMMMUMMHPHH08.0.
Order No.
MAR1030-OTTTTTTTTTTTTTMMMMMMMMMMMMUMMHPHH08.0.
More Interfaces

V.24 interface
1 x RJ11 socket

USB interface
1 x to connect auto-configuration adapter ACA21-USB

Network size - length of cable

Twisted pair (TP)
0 m ... 100 m

Multimode fiber (MM)
50/125 µm  0 - 5000 m, 8 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 800 MHz x km
Multimode fiber (MM)
62.5/125 µm  0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km
Network size - cascadibility

Line - / star topology
Any

Ring structure (HIPER-Ring) quantity switches
100 switches

Power requirements

Operating voltage
Power supply 1: 120/250 VDC, 110/230 VAC; Power supply 2: 120/250 VDC, 110/230 VAC
Current consumption at 230 V AC  Power supply 1 and 2: 150 mA (35W) max, if all ports are equipped with fiber
Software

Management
Serial interface, web-interface, SNMP V1/V2, HiVision file transfer SW HTTP/TFTP, LLDP-MED, Voice VLAN
Diagnostics  LEDs, log-file, syslog, relay contact, RMON, port mirroring 1:1 and n:1, egress/ingress traffic configurable, topology discovery 802.1AB, cable tester (TX), address conflict detection, network error detection, SFP diagnostic [temperature, optical input and output power (µW and dBm)], Trap for configuration saving and changing, duplex mismatch detection, disable learning, Port Monitor
Configuration
Comand line interface (CLI), TELNET, BootP, DHCP, DHCP option 82, HIDiscovery, easy device exchange with auto-configuration adapter ACA21-USB (automatic software and/or configuration upload), automatic script load from ACA21, integrated DHCP server per port, DHCP relay, automatic invalid configuration undo, Offline Configuration, SFP Whitelist, ARC automatic ring configuration (MRP), automatic port shutdown (link flapping), configuration signature (water marking), overload detection

Security
Port Security (IP und MAC) with multiple addresses (MAC 50 per port), SNMP V3, SSHv2, Authentication (IEEE802.1x), 802.1x Multi Cliant Authentication, Guest VLAN and Unauthenticated VLAN, Port based Radius VLAN assignment

Redundancy functions
HIPER-Ring, Fast HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP in parallel, link aggregation, multiple rings

Filter
QoS 4 classes, priorisation (IEEE 802.1D/p), VLAN (IEEE 802.1Q), Voice VLAN, shared VLAN learning, Q-in-Q double VLAN tagging, multicast IGMP v1/v2/v3 (snooping/querier), multicast detection unknown multicast, broadcast-, unicast-, multicast limiter, fast aging, GMRP IEEE 802.1D, Jumbo Frame Support
Industrial Profiles
EtherNet/IP and PROFINET (2.2 PDEV, GSDML Stand-alone generator, automatic device exchange) profiles included, configuration and diagnostic via automation software tools like e.g. STEP7, or Control Logix IEC61850 protocol (MMS Server, Switch Model)

Time synchronisation
SNTP Server, PTP / IEEE 1588, realtime clock with energy buffer
Flow control
Flow Control 802.3x, Port Priority 802.1D/p, Priority (TOS/DIFFSERV), Prio (MAC/IP), Prio Mapping (TOS Layer2), Traffic Shaping (Unicast, Multicast, Broadcast) Ingress / Egress

Ambient conditions

Operating temperature
-40 ºC ... 85 ºC

Storage/transport temperature
-40 ºC ... 85 ºC

Relative humidity
(non-condensing)  10 % ... 95 %

Protective paint on PCB
No

Mechanical construction

Dimensions (W x H x D)
445 mm x 44 mm x 308 mm

Mounting
19" control cabinet

Weight
appr. 5 kg

Protection class
IP30

Mechanical stability

IEC 60068-2-27 shock
15 g, 11 ms duration, 18 schocks

IEC 60068-2-6 vibration
1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13,2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)
8 kV contact discharge, 15 kV air discharge

EN 61000-4-3 electromagnetic field
35 V/m (80 - 2700 MHz); 1kHz, 80% AM

EN 61000-4-4 fast transients (burst)
4 kV power line, 4 kV data line

EN 61000-4-5 surge voltage
Power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5kV (line/earth)
EN 61000-4-6 conducted immunity
2,5 kV (line/earth), 1 kV (line/line) (1MHz)
EN 61000-4-16 mains frequency voltage
30V, 50Hz continous; 300V, 50Hz 1s

EMC emitted immunity

FCC CFR47 Part 15
FCC CFR47 Part 15 Class A

EN 55022
EN 55022 Class A

Approvals

Safety of industrial control equipment
cUL 508 (pending)
Hazardous locations
cUL 1604 Class1 Div 2 (pending)

Germanischer Lloyd
Germanischer Lloyd (in preparation)

Substation
IEC 61850-3; IEEE 1613

Transportation
EN 50121-4, NEMA TS
