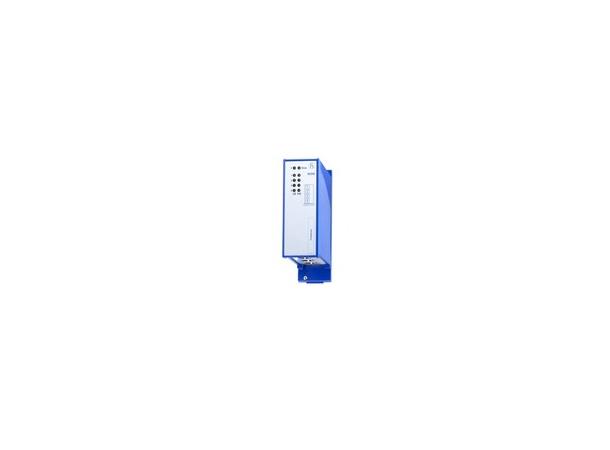

Hirschmann Power MICE Module, 4x SM/SC MSM20-L2L2L2L2SZ9HH9E

Hirschmann Power MICE Module, 4x SM/SC

MSM20-L2L2L2L2SZ9HH9E

Varunummer: MSM20-4xL2SZ9HH

Product description

DescriptionFast Ethernet media module for PowerMICE Switches (MSP).
Port type and quantityPort 1: 100Base-Fx, LH SM-SC; Port 2: 100Base-Fx, LH SM-SC; Port 3: 100Base-Fx, LH SM-SC; Port 4: 100Base-Fx, LH SM-SC
TypeMSM20-L2L2L2L2SZ9HH9E99.9
Order No.MSM20-L2L2L2L2SZ9HH9E99.9

Network size - length of cable

Multimode fiber (MM) 50/125 µm-
Multimode fiber (MM) 62.5/125 µm-
Single mode fiber (SM) 9/125 µm-
Single mode fiber (LH) 9/125 µm (long haul transceiver)24 - 86,6 km, 7 - 29 dB Link Budget at 1550 nm, A = 0,3 dB/km, 3 dB Reserve, D = 19 ps/(nm x km)

Power requirements

Operating voltagePower supply via the backplane of the MICE switch

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 85 ºC
Protective paint on PCBNo
Relative humidity (non-condensing)5 % ... 95 %

Mechanical construction

Dimensions (W x H x D)38 mm x 134 mm x 118 mm
MountingBackplane
Weightn/a
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity10 V (150 kHz-80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Basis StandardC-Tick, CE, EN61131
Safety of information technology equipmentEN 60950-1
TransportationNEMA TS2
Country Approval

C-Tick
