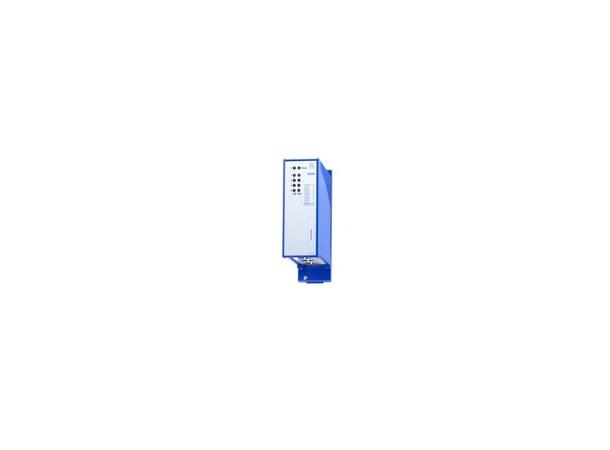

Hirschmann Power MICE Module T1, PoE+ MSM42-T1T1T1T1SZ9HH9E99.9

Hirschmann Power MICE Module T1, PoE+

MSM42-T1T1T1T1SZ9HH9E99.9

Varunummer: MSM42-4xT1SZ9HH9E99
Product description
Description
Gigabit Ethernet media module for PowerMICE Switches (MSP), supports PoE and PoE+ (Power over Ethernet Plus, IEEE 802.3at) per module

Port type and quantity
Port 1: 10/100/1000Base-TX, RJ45; Port 2: 10/100/1000Base-TX, RJ45; Port 3: 10/100/1000Base-TX, RJ45; Port 4: 10/100/1000Base-Tx, RJ45
Type
MSM42-T1T1T1T1SZ9HH9E99.9
Order No.
MSM42-T1T1T1T1SZ9HH9E99.9

Network size - length of cable
Twisted pair (TP)  0 m ... 100 m
Multimode fiber (MM) 50/125 µm  -
Multimode fiber (MM) 62.5/125 µm  -
Single mode fiber (SM) 9/125 µm  -
Single mode fiber (LH) 9/125 µm (long haul transceiver)  -

Power requirements
Operating voltage

Power supply via the backplane of the MICE switch

Ambient conditions
Operating temperature  0 ºC ... 60 ºC
Storage/transport temperature  -40 ºC ... 85 ºC

Protective paint on PCB
No

Relative humidity (non-condensing)
5 % ... 95 %

Mechanical construction
Dimensions (W x H x D)
38 mm x 134 mm x 118 mm

Mounting
Backplane

Weight  n/a
Protection class
IP20

Mechanical stability
IEC 60068-2-27 shock  15 g, 11 ms duration, 18 shocks

EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)  4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field  10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)  2 kV power line, 1 kV data line
EN 61000-4-5 surge voltage  power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity  10 V (150 kHz-80 MHz)
EMC emitted immunity
FCC CFR47 Part 15  FCC 47 CFR Part 15 Class A
EN 55022  EN 55022 Class A

Approvals
Basis Standard
CE, EN61131
Safety of information technology equipment  EN 60950-1
Transportation  NEMA TS2
Country Approval  C-Tick
