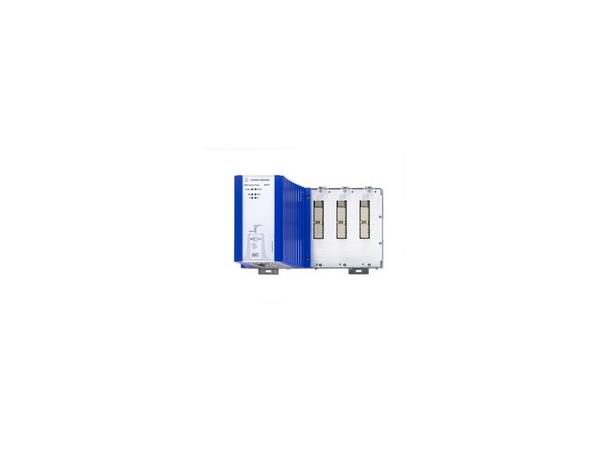

Hirschmann Power MICE Switch 3-plan MSP32-08040SPZ999HHE2A

Hirschmann Power MICE Switch 3-plan

MSP32-08040SPZ999HHE2A

Varunummer: MSP32-08040SPZ999HHE



Product description

DescriptionGigabit Ethernet-Switch according to IEEE 802.3 Modular, managed, Industrial Switch for DIN Rail Store-and-Forward-Switching, fan less design, HiOS Layer 2 Advanced, HiOS Layer 3 Advanced
Port type and quantityFast Ethernet ports in total: 8; Gigabit Ethernet ports: 4
TypeMSP32-08040SPZ999HHE2A04.0
Order No.MSP32-08040SPZ999HHE2A04.0

Classification

Belden brandHirschmann

More Interfaces

Power supply/signaling contact2 x plug-in terminal block, 4-pin
V.24 interface1 x RJ45 socket
USB interface1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Network size - cascadibility

Line - / star topologyany

Power requirements

Operating voltage48 VDC (47–57 VDC PoE oder 53–57 VDC PoE+)

Software

ManagementLLDP (802.1AB), SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet, Serial interface, web-interface, HiVision file transfer SW HTTP/TFTP
DiagnosticsMAC notification, Signal contact, Device status indication, TCPDump, LED, Syslog, Persistent logging on ACA21/31, Port Monitor, Duplex mismatch detection, RMON (1,2,3,9), Port mirroring 1:1, Port mirroring N:1, SFLOW, System information, Self tests on cold start, Copper cable test, SFP management (temperature, optical input and output power), Configuration check dialog, Switch dump, Snapshot configuration feature
ConfigurationCommand line interface (CLI), CLI scripting, Full featured MIB support, WEB based management
SecurityMAC based port security, Port-based access control with 802.1X, Guest/unauthenticated VLAN, Integrated Authentication Server (IAS), RADIUS VLAN assignment, RADIUS policy assignment, Multi-client authentication per port, MAC authentication bypass, DHCP snooping, IP source guard, Dynamic ARP inspection, Automatic Denial-of-Service Prevention, Ingress MAC based ACL, Egress MAC based ACL, Ingress IPv4 based ACL, Egress IPv4 based ACL, Time based ACL, VLAN based ACL, Ingress VLAN based ACL, Egress VLAN based ACL, ACL flow based limiting, Device security indication, Audit trail, CLI logging, HTTPS certificate management, Restricted management access, Configurable password policy, Configurable number of login attempts, SNMP logging, Different privilege levels, Local user management, Remote authentication via RADIUS, Account locking
Redundancy functionsLink Aggregation, Link Backup, MRP (Media Redundancy Protocal IEC62439-2), MRP over Link Aggregation, RSTP 802.1D-2004 (IEC62439-1), Sub Ring Manager
FilterIndependent VLAN learning, Fast aging, Static unicast/multicast address entries, QoS / Port priority (802.1D/p), TOS/DSCP prioritization, Interface trust mode, CoS queue management, IP Ingress DiffServ classification and policing, IP Egress DiffServ classification and policing, VLAN (802.1Q), Protocol based VLAN, Voice VLAN, MAC based VLAN, IP subnet based VLAN, IGMP snooping/querier per VLAN (v1/v2/v3), Unkown multicast filtering, MVRP (Multiple VLAN Registration Protocol), MMRP (Multiple MAC Registration Protocol), MRP (Multiple Registration Protocol)
Industrial ProfilesIEC61850 protocol
Time synchronisationSNTP Server and Client, PTPv2 TC two-step, PTPv2 BC, Buffered RTC
Flow controlFlow control (IEEE802.3X), egress interface shaping, ingress storm protection, Queue-Shaping / max. Queue Bandwidth
MiscellaneousDual software image support, Digital IO management, PoE (802.3AF), PoE+ (802.3AT), Access to management restricted by VLAN, VLAN unaware mode, Cable crossing, Port power down

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)10 % ... 95 %

Mechanical construction

Dimensions (W x H x D)236.6 mm x 147.2 mm x 141.75 mm
Width236.6 mm
Height147.2 mm
Depth141.75 mm
MountingDIN Rail
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration3.5 mm, 5–8.4 Hz, 10 cycles, 1 octave/min; 1 g, 8.4–150 Hz, 10 cycles, 1 octave/min

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)4 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-3000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 conducted immunity10 V (150 kHz-80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Basis StandardC-Tick, CE, EN61131
Safety of information technology equipmentEN 60950-1
TransportationNEMA TS2
Country ApprovalC-Tick
