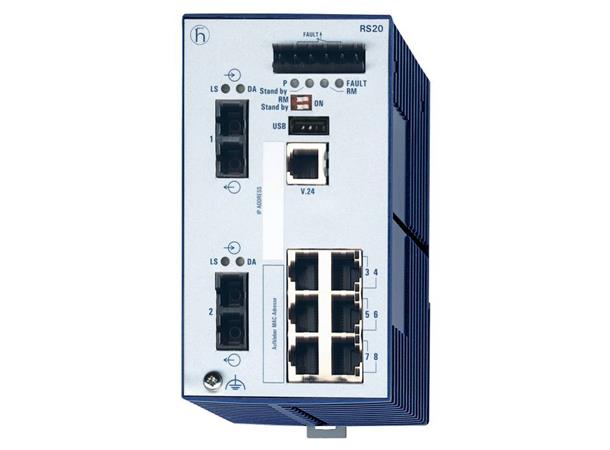

OpenRail RS20 6xTX-RJ 2xFX (SM-SC) 0-60°C 9,6-60VDC Professional

OpenRail RS20 6xTX-RJ 2xFX (SM-SC)

0-60°C 9,6-60VDC Professional

Varunummer: RS20-0800S2S2SDAP
Product description
DescriptionManaged Fast-Ethernet-Switch for DIN rail store-and-forward-switching, fanless design ; Software Layer 2 Professional
Part Number943434020
Port type and quantity8 ports in total: 6 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x 100BASE-FX, SM-SC ; Uplink 2: 1 x 100BASE-FX, SM-SC
More Interfaces
Power supply/signaling contact1 x plug-in terminal block, 6-pin
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect auto-configuration adapter ACA21-USB
Network size - length of cable
Twisted pair (TP)Port 1 - 6: 0 - 100 m
Single mode fiber (SM) 9/125 µmUplink 1: 0 - 32.5 km, 16 dB Link Budget at 1300 nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps/(nm x km) \\\ Uplink 2: 0 - 32.5 km, 16 dB Link Budget at 1300 nm, A = 0.4 dB/km, 3 dB reserve, D = 3.5 ps/(nm x km)
Network size - cascadibility
Line - / star topologyany
Ring structure (HIPER-Ring) quantity switches50 (reconfiguration time 0.3 sec.)
Power requirements
Operating Voltage12/24/48V DC (9,6-60)V and 24V AC (18-30)V (redundant)
Power consumptionmax. 7.7 W
Power output in BTU (IT)/hmax. 26.3
Software
SwitchingDisable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), VLAN (802.1Q), GARP VLAN Registration Protocol (GVRP), Double VLAN Tagging (QinQ), Voice VLAN, GARP Multicast Registration Protocol (GMRP), IGMP Snooping/Querier (v1/v2/v3)
RedundancyAdvanced Ring Configuration for MRP, HIPER-Ring (Manager), HIPER-Ring (Ring Switch), Fast HIPER-Ring, Link Aggregation with LACP, Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), MSTP (802.1Q), RSTP Guards, RSTP over MRP
ManagementDual Software Image Support, TFTP, LLDP (802.1AB), LLDP-MED, SSHv1, SSHv2, V.24, HTTP, HTTPS, Traps, SNMP v1/v2/v3, Telnet
DiagnosticsManagement Address Conflict Detection, Address Relearn Detection, MAC Notification, Signal Contact, Device Status Indication, TCPDump, LEDs, Syslog, Port Monitoring with Auto-Disable, Link Flap Detection, Overload Detection, Duplex Mismatch Detection, Link Speed and Duplex Monitoring, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, Port Mirroring N:1, System Information, Self-Tests on Cold Start, Copper Cable Test, SFP Management, Configuration Check Dialog, Switch Dump
ConfigurationAutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, DHCP Server: per Port, DHCP Server: Pools per VLAN, DHCP Server: Option 43, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), CLI Scripting, Full-featured MIB Support, Web-based Management, Context-sensitive Help
SecurityIP-based Port Security, MAC-based Port Security, Port-based Access Control with 802.1X, Guest/unauthenticated VLAN, RADIUS VLAN Assignment, Multi-Client Authentication per Port, MAC Authentication Bypass, Access to Management restricted by VLAN, HTTPS Certificate Management, Restricted Management Access, Appropriate Use Banner, SNMP Logging, Local User Management, Remote Authentication via RADIUS, Password change on first login
Time synchronisationBuffered Real Time Clock, SNTP Client, SNTP Server
Industrial ProfilesEtherNet/IP Protocol, PROFINET IO Protocol
MiscellaneousManual Cable Crossing
PresettingsStandard
Ambient conditions
Operating temperature0-+60 °C
Storage/transport temperature-40-+70 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)47 mm x 131 mm x 111 mm
Weight410 g
MountingDIN Rail
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55032EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN61131
Safety of industrial control equipmentcUL 508
Hazardous locationscULus ISA12.12.01 class1 div.2 (cUL 1604 class1 div.2)
Scope of delivery and accessories
AccessoriesRail Power Supply RPS30, RPS60, RPS90 or RPS120, Terminal Cable, Network Management Software Industrial HiVision, Auto configuration adapter (ACA21-USB), 19"-DIN rail adapter
Scope of deliveryDevice, terminal block, General safety instructions
