Hirschmann OpenRail RS20 8xTX-RJ 0-60°C 9,6-60VDC Unmanaged, GL approved

Hirschmann OpenRail RS20 8xTX-RJ

0-60°C 9,6-60VDC Unmanaged, GL approved

Varunummer: RS20-0800T1T1SDHU

Product description

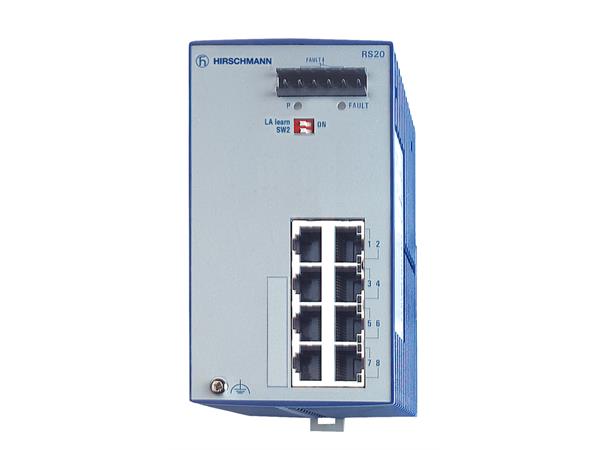

Description8 port Fast-Ethernet-Switch, unmanaged, for DIN rail store-and-forward-switching, fanless design
Port type and quantity8 ports in total; 1. uplink: 10/100BASE-TX, RJ45; 2. uplink: 10/100BASE-TX, RJ45; 6 x standard 10/100 BASE TX, RJ45
TypeRS20-0800T1T1SDHUHH
Order No.RS20-0800T1T1SDHUHH

More Interfaces

Power supply/signaling contact1 x plug-in terminal block, 6-pin

Network size - length of cable

Twisted pair (TP)0 m ... 100 m

Network size - cascadibility

Line - / star topologyAny

Power requirements

Operating voltage12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
Current consumption at 24 V DC221
Current consumption at 48 V DC111
Power output in Btu (IT) h18.1

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 70 ºC
Relative humidity (non-condensing)10 % ... 95 %
MTBF63.4 years (MIL-HDBK-217F)
Protective paint on PCBNo

Mechanical construction

Dimensions (W x H x D)74 mm x 131 mm x 111 mm
MountingDIN Rail
Weight410 g
Protection classIP20

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 schocks
IEC 60068-2-6 vibration1 mm, 2 Hz - 13.2 Hz, 90 min.; 0.7g, 13,2 Hz - 100 Hz, 90 min.; 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80 - 1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagepower line: 2kV (line/earth), 1kV (line/line), 1kV data line
EN 61000-4-6 conducted immunity3 V (10 kHz - 150 kHz), 10 V (150 kHz - 80 MHz)

EMC emitted immunity

FCC CFR47 Part 15FCC CFR47 Part 15
EN 55022EN 55022 Class A

Approvals

Safety of industrial control equipmentcUL 508
Hazardous locationscUL 1604 Class1 Div 2
Germanischer LloydGermanischer Lloyd
Railway normEN 50121-4
SubstationIEC 61850-3, IEEE 1613

Scope of delivery and accessories

Scope of deliveryDevice, terminal block, operating manual
