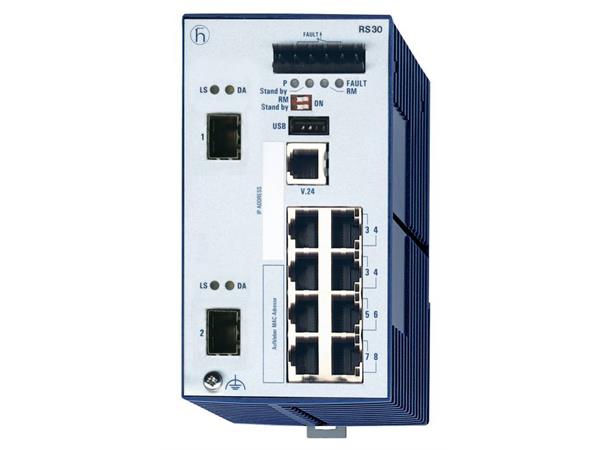

OpenRail RS30 8xTX 2x GIGA (SFP+SFP) -40-+70° 9,6-6 VCD Enhanced + Conf. Coat

OpenRail RS30 8xTX 2x GIGA (SFP+SFP)

-40-+70° 9,6-6 VCD Enhanced + Conf. Coat

Varunummer: RS30-0802O6O6EDAE
Product description
DescriptionManaged Gigabit / Fast Ethernet industrial switch for DIN rail, store-and-forward-switching, fanless design ; Software Layer 2 Enhanced
Port type and quantity10 ports in total: 8 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x Gigabit SFP-slot ; Uplink 2: 1 x Gigabit SFP-Slot
More Interfaces
Power supply/signaling contact1 x plug-in terminal block, 6-pin
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect auto-configuration adapter ACA21-USB
Network size - length of cable
Twisted pair (TP)Port 1 - 8: 0 - 100 m
Single mode fiber (SM) 9/125 µmUplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Single mode fiber (LH) 9/125 µm (long haul transceiver)Uplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Multimode fiber (MM) 50/125 µmUplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Multimode fiber (MM) 62.5/125 µmUplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Network size - cascadibility
Line - / star topologyany
Ring structure (HIPER-Ring) quantity switches50 (reconfiguration time 0.3 sec.)
Power requirements
Operating Voltage12/24/48V DC (9,6-60)V and 24V AC (18-30)V (redundant)
Power consumptionmax. 8.9 W
Power output in BTU (IT)/hmax. 30.4
Software
SwitchingDisable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), VLAN (802.1Q), IGMP Snooping/Querier (v1/v2/v3)
RedundancyHIPER-Ring (Manager), HIPER-Ring (Ring Switch), Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP
ManagementTFTP, LLDP (802.1AB), V.24, HTTP, Traps, SNMP v1/v2/v3, Telnet
DiagnosticsManagement Address Conflict Detection, Address Relearn Detection, Signal Contact, Device Status Indication, LEDs, Syslog, Duplex Mismatch Detection, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, System Information, Self-Tests on Cold Start, SFP Management, Switch Dump
ConfigurationAutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), Full-featured MIB Support, Web-based Management, Context-sensitive Help
SecurityIP-based Port Security, MAC-based Port Security, Access to Management restricted by VLAN, SNMP Logging, Local User Management, Password change on first login
Time synchronisationSNTP Client, SNTP Server
Industrial ProfilesEtherNet/IP Protocol, PROFINET IO Protocol
MiscellaneousManual Cable Crossing
PresettingsStandard
Ambient conditions
Operating temperature-40-+70 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Protective paint on PCBYes (conformal coating)
Mechanical construction
Dimensions (WxHxD)74 mm x 131 mm x 111 mm
Weight410 g
MountingDIN Rail
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55032EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN61131
Safety of industrial control equipmentcUL 508
Hazardous locationscULus ISA12.12.01 class1 div.2 (cUL 1604 class1 div.2)
Scope of delivery and accessories
AccessoriesRail Power Supply RPS30, RPS60, RPS90 or RPS120, Terminal Cable, Network Management Software Industrial HiVision, Auto configuration adapter (ACA21-USB), 19"-DIN rail adapter
Scope of deliveryDevice, terminal block, General safety instructions
