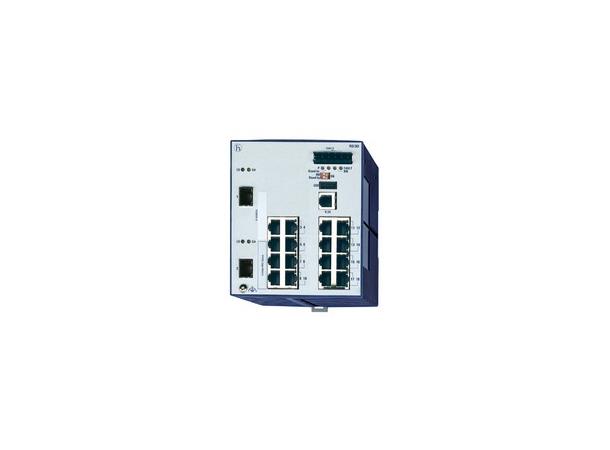

OpenRail RS30 16xTX 2xGIGA (SFP+SFP) -40-70°C 9,6-60VDC Enhanced, GL & ATEX

OpenRail RS30 16xTX 2xGIGA (SFP+SFP)

-40-70°C 9,6-60VDC Enhanced, GL & ATEX

Varunummer: RS30-1602O6O6TDBE
Product description
DescriptionManaged Gigabit / Fast Ethernet industrial switch for DIN rail, store-and-forward-switching, fanless design ; Software Layer 2 Enhanced
Port type and quantity18 ports in total: 16 x standard 10/100 BASE TX, RJ45 ; Uplink 1: 1 x Gigabit SFP-slot ; Uplink 2: 1 x Gigabit SFP-Slot
More Interfaces
Power supply/signaling contact1 x plug-in terminal block, 6-pin
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect auto-configuration adapter ACA21-USB
Network size - length of cable
Twisted pair (TP)Port 1 - 16: 0 - 100 m
Single mode fiber (SM) 9/125 µmUplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Single mode fiber (LH) 9/125 µm (long haul transceiver)Uplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Multimode fiber (MM) 50/125 µmUplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Multimode fiber (MM) 62.5/125 µmUplink 1: cf. SFP modules M-SFP \\\ Uplink 2: cf. SFP modules M-SFP
Network size - cascadibility
Line - / star topologyany
Ring structure (HIPER-Ring) quantity switches50 (reconfiguration time 0.3 sec.)
Power requirements
Operating Voltage12/24/48V DC (9,6-60)V and 24V AC (18-30)V (redundant)
Power consumptionmax. 13 W
Power output in BTU (IT)/hmax. 44.4
Software
SwitchingDisable Learning (hub functionality), Independent VLAN Learning, Fast Aging, Static Unicast/Multicast Address Entries, QoS / Port Prioritization (802.1D/p), TOS/DSCP Prioritization, Egress Broadcast Limiter per Port, Flow Control (802.3X), VLAN (802.1Q), IGMP Snooping/Querier (v1/v2/v3)
RedundancyHIPER-Ring (Manager), HIPER-Ring (Ring Switch), Media Redundancy Protocol (MRP) (IEC62439-2), Redundant Network Coupling, RSTP 802.1D-2004 (IEC62439-1), RSTP Guards, RSTP over MRP
ManagementTFTP, LLDP (802.1AB), V.24, HTTP, Traps, SNMP v1/v2/v3, Telnet
DiagnosticsManagement Address Conflict Detection, Address Relearn Detection, Signal Contact, Device Status Indication, LEDs, Syslog, Duplex Mismatch Detection, RMON (1,2,3,9), Port Mirroring 1:1, Port Mirroring 8:1, System Information, Self-Tests on Cold Start, SFP Management, Switch Dump
ConfigurationAutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30), Automatic Configuration Undo (roll-back), Configuration Fingerprint, BOOTP/DHCP Client with Auto-Configuration, AutoConfiguration Adapter ACA21/22 (USB), HiDiscovery, DHCP Relay with Option 82, Command Line Interface (CLI), Full-featured MIB Support, Web-based Management, Context-sensitive Help
SecurityIP-based Port Security, MAC-based Port Security, Access to Management restricted by VLAN, SNMP Logging, Local User Management, Password change on first login
Time synchronisationSNTP Client, SNTP Server
Industrial ProfilesEtherNet/IP Protocol, PROFINET IO Protocol
MiscellaneousManual Cable Crossing
PresettingsStandard
Ambient conditions
Operating temperature-40-+70 °C
Storage/transport temperature-40-+85 °C
Relative humidity (non-condensing)10-95 %
Mechanical construction
Dimensions (WxHxD)110 mm x 131 mm x 111 mm
Weight600 g
MountingDIN Rail
Protection classIP20
Mechanical stability
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)6 kV contact discharge, 8 kV air discharge
EN 61000-4-3 electromagnetic field10 V/m (80-1000 MHz)
EN 61000-4-4 fast transients (burst)2 kV power line, 1 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
EN 61000-4-6 Conducted Immunity3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EMC emitted immunity
EN 55032EN 55032 Class A
FCC CFR47 Part 15FCC 47CFR Part 15, Class A
Approvals
Basis StandardCE, FCC, EN61131
Safety of industrial control equipmentcUL 508
Hazardous locationscULus ISA12.12.01 class1 div.2 (cUL 1604 class1 div.2); ATEX Zone 2; IECEx Zone 2
SubstationIEC 61850-3; IEEE 1613
TransportationNEMA TS2; EN 50121-4
Scope of delivery and accessories
AccessoriesRail Power Supply RPS30, RPS60, RPS90 or RPS120, Terminal Cable, Network Management Software Industrial HiVision, Auto configuration adapter (ACA21-USB), 19"-DIN rail adapter
Scope of deliveryDevice, terminal block, General safety instructions
Further Instructions
Product Documentationhttps://www.doc.hirschmann.com/index.html
Certificateshttps://www.doc.hirschmann.com/certificates.html
