Hirschmann OpenRail RSP25, 11x 100Mb,EEC RSP25-11003Z6TTECCV9HPE3S

Hirschmann OpenRail RSP25, 11x 100Mb,EEC

RSP25-11003Z6TTECCV9HPE3S

Varunummer: RSP25-11003Z6TTE-01

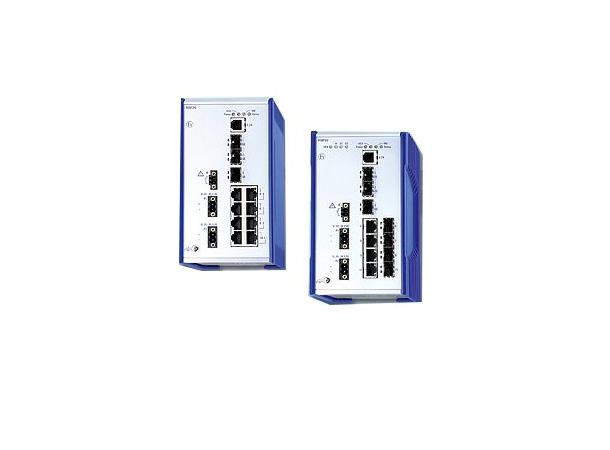

Hirschmann OpenRail Powerswitch RSP25 med 11 stykk 100Mb porter(3x uplink) med utvidet temptoleranse(-40-60) og conformal coating
Perfekt for nettverk med ingen "switchover time", tilbyr PRP-protokoll

11 port Fast Ethernet Switch, managed, Software Layer 2 Enhanced, for DIN rail, store-and-forward-switching, fanless design
Port type and quantity - 11 ports in total, thereof 8 x FE; 1. uplink: 10/100BASE-SFP, RJ45; 2. uplink: 10/100BASE-SFP, 3. uplink: 10/100BASE-SFP RJ45; 8 x 10/100BASE TX, RJ45

More Interfaces
Power supply/signaling contact - Power supply 1: 1 x plug-in terminal block 2-pin 1 x plug-in terminal block 2-pin; Power supply 2: 1 x plug-in terminal block 2-pin 1 x plug-in terminal block 2-pin
V.24 interface - 1 x RJ11 socket
USB interface - 1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Power requirements
Operating voltage - Power supply 1: 24/36/48 VDC (16,8-60) V; Power supply 2: 24/36/48 VDC (16,8-60) V

Network size - length of cable
Twisted pair (TP) 0 m ... 100 m
Multimode fiber (MM) 50/125 µm  see SFP LWL-Modul M-SFP-SX/LC and M-SFP-LX/LC
Multimode fiber (MM) 62.5/125 µm  see SFP LWL-Modul M-SFP-SX/LC and M-SFP-LX/LC
Single mode fiber (SM) 9/125 µm  see SFP LWL-Modul M-SFP-LX/LC
Single mode fiber (LH) 9/125 µm (long haul transceiver)  see SFP LWL-Modul M-SFP-LH/LC and M-SFP-LH+/LC

Network size - cascadibility
Line - / star topology - any

Software
Management  Serial interface V.24 web-interface, Telnet, SSHv2, HTTP, HTTPS, TFTP, SFTP, SNMP v1/v2/v3, Traps

Diagnostics - LED, persistent logging, syslog, signal contact, device status indication, port mirroring N:1, RMON (1,2,3,9), TCPDump, LLDP, SFP management (temperature, optical input and output power), switch dump, configuration check dialog, system information, self tests on cold start, system monitor 1

Configuration - Command line interface (CLI), WEB based management, full featured MIB support, BOOTP/DHCP client with auto configuration, HiDiscovery, auto-configuration adapter ACA31 (SD card), Automatic configuration undo (roll-back), text based configuration file

Security - Enhanced encryption ( >56 Bit, up to 256Bit DES) Management access; MAC based port security, Authentication (IEEE802.1x), Guest/unauthenticated VLAN, Radius client, Restricted management access, Local user accounts, different privilege levels, management authentication via RADIUS, account locking, configurable password policy, account locking, audit trail, configurable login attempts, HTTPS certificate management, CLI/SNMP logging

Filter  QoS (8 classes), CoS queue management, interface trust mode, TOS/DSCP prioritization, port priority (IEEE802.1D/p), VLAN (IEEE802.1Q), IGMP snooping/querier per VLAN (v1/v2/v3), unkown multicast filtering, independent VLAN learning, static unicast/multicast address entries, fast aging

Redundancy functions - Fast MRP, PRP (Parallel Redundancy Protocol); default PRP

Time synchronisation  PTPv2 TC two-step, SNTP server and client, Buffered RTC
Flow control  Flow control (IEEE802.3X), egress interface shaping, ingress storm protection
Miscellaneous  Port power down, cable crossing, dual image support, VLAN unaware mode, access to management restricted by VLAN

Ambient conditions
Operating temperature  -40 ºC ... 60 ºC
Storage/transport temperature  -40 ºC ... 70 ºC
Relative humidity (non-condensing)  10 % ... 95 %
Conformal Coating

Mechanical construction
Dimensions (W x H x D)  90 mm x 164 mm x 120 mm
Mounting  DIN Rail
Weight  1200 gram
Protection class  IP30

Mechanical stability
IEC 60068-2-27 shock  15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration  1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7 g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min


EMC interference immunity
EN 61000-4-2 electrostatic discharge (ESD)  8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field  35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)  4 kV power line, 4 kV data line
EN 61000-4-5 surge voltage  power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line IEEE1613: power line 5 kV (line/earth)
EN 61000-4-6 conducted immunity  3 V (10 kHz-150 kHz), 10 V (150 kHz-80 MHz)
EN 61000-4-16 mains frequency voltage  30 V, 50 Hz continous; 300 V, 50 Hz 1 s
EMC emitted immunity
FCC CFR47 Part 15  FCC 47 CFR Part 15 Class A


Scope of delivery and accessories

Scope of delivery Device, terminal block, operating manual
