MACH 1000 Switch for Substation MAR1030-4OZZZZZZZZTTTTTTTT99999999SLLHP

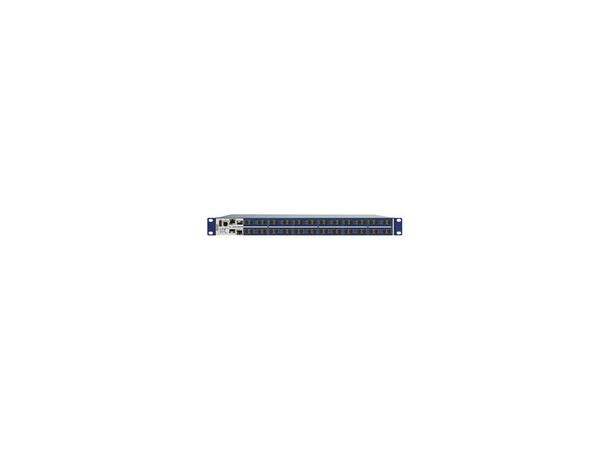

MACH 1000 Switch for Substation

MAR1030-4OZZZZZZZZTTTTTTTT99999999SLLHP

Varunummer: MAR1030-4O8xZ8xT8x9S

Description

Industrial managed Fast/Gigabit Ethernet Switch, 19" rack mount, fanless Design, according to IEEE 802.3, store-and-forward-switching

Port type and quantity

Gigabit-Ethernet ports in total: 4; 4 x GE-SFP-Slot;

Fast-Ethernet ports in total: 16 x ports in total; 8 x Twisted Pair, 8 x SFP Slot;Type

Order No.

MAR1030-OTTTTTTTTTTTTTMMMMMMMMMMMMUMMHPHH08.0.

Interfaces
V.24 interface

1 x RJ11 socket
USB interface

1 x to connect auto-configuration adapter ACA21-USB
Network size - length of cable
Twisted pair (TP)

0 m ... 100 m
Multimode fiber (MM)

50/125 µm  0 - 5000 m, 8 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 800 MHz x km

Multimode fiber (MM)

62.5/125 µm  0 - 4000 m, 11 dB Link Budget at 1300 nm, A = 1 dB/km, 3 dB reserve, B = 500 MHz x km

Network size - cascadibility
Line - / star topology

Any

Ring structure (HIPER-Ring) quantity switches

100 switches

Operating voltage

Power supply 1: 24/36/48 VDC; Power supply 2: 24/36/48 VDC
Power supply 1 and 2: 1400 mA max, if all ports are equipped with fiber

Software
Management

Serial interface, web-interface, SNMP V1/V2, HiVision file transfer SW HTTP/TFTP, LLDP-MED, Voice VLAN
Diagnostics

LEDs, log-file, syslog, relay contact, RMON, port mirroring 1:1 and n:1, egress/ingress traffic configurable, topology discovery 802.1AB, cable tester (TX), address conflict detection, network error detection, SFP diagnostic [temperature, optical input and output power (µW and dBm)], Trap for configuration saving and changing, duplex mismatch detection, disable learning, Port Monitor

Configuration

Comand line interface (CLI), TELNET, BootP, DHCP, DHCP option 82, HIDiscovery, easy device exchange with auto-configuration adapter ACA21-USB (automatic software and/or configuration upload), automatic script load from ACA21, integrated DHCP server per port, DHCP relay, automatic invalid configuration undo, Offline Configuration, SFP Whitelist, ARC automatic ring configuration (MRP), automatic port shutdown (link flapping), configuration signature (water marking), overload detection
Security

Port Security (IP und MAC) with multiple addresses (MAC 50 per port), SNMP V3, SSHv2, Authentication (IEEE802.1x), 802.1x Multi Cliant Authentication, Guest VLAN and Unauthenticated VLAN, Port based Radius VLAN assignment
Redundancy functions

HIPER-Ring, Fast HIPER-Ring, MRP, MSTP, RSTP - IEEE802.1D-2004, MRP and RSTP in parallel, link aggregation, multiple rings
Filter

QoS 4 classes, priorisation (IEEE 802.1D/p), VLAN (IEEE 802.1Q), Voice VLAN, shared VLAN learning, Q-in-Q double VLAN tagging, multicast IGMP v1/v2/v3 (snooping/querier), multicast detection unknown multicast, broadcast-, unicast-, multicast limiter, fast aging, GMRP IEEE 802.1D, Jumbo Frame Support

Industrial Profiles

EtherNet/IP and PROFINET (2.2 PDEV, GSDML Stand-alone generator, automatic device exchange) profiles included, configuration and diagnostic via automation software tools like e.g. STEP7, or Control Logix IEC61850 protocol (MMS Server, Switch Model)
Time synchronisation

SNTP Server, PTP / IEEE 1588, realtime clock with energy buffer

Flow control

Flow Control 802.3x, Port Priority 802.1D/p, Priority (TOS/DIFFSERV), Prio (MAC/IP), Prio Mapping (TOS Layer2), Traffic Shaping (Unicast, Multicast, Broadcast) Ingress / Egress
Operating temperature

 0 ºC ... 60 ºC
Substation

IEC 61850-3; IEEE 1613
