MACH 1000 Switch for Substation MAR1040-4C4C4C4C9999SLLHR

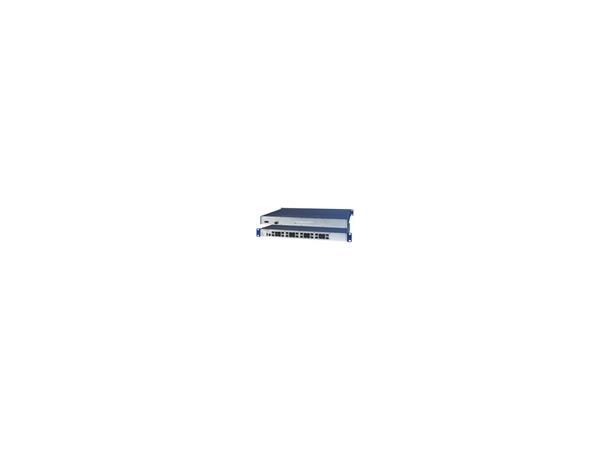

MACH 1000 Switch for Substation

MAR1040-4C4C4C4C9999SLLHR

Varunummer: MAR1040-4x4C4x9SLLHR

Product description

DescriptionEthernet/Fast Ethernet/Gigabit Ethernet switch, managed, Industrial Switch 19" rack mount, fanless design
Port type and quantity16 x combo ports (10/100/1000BASE TX RJ45 plus related FE/GE-SFP slot)
TypeMAR1040-4C4C4C4C9999SLLHRHH09.0.
Order No.MAR1040-4C4C4C4C9999SLLHRHH09.0.

More Interfaces

Power supply/signaling contactpower supply 1: power supply, 2 pin plug-in terminal block, signal contact, 2 pin plug-in terminal block; power supply 2: power supply, 2 pin plug-in terminal block, signal contact, 2 pin plug-in terminal block
V.24 interface1 x RJ11 socket
USB interface1 x USB to connect the AutoConfiguration Adapter ACA21-USB

Network size - length of cable

Twisted pair (TP)0 m ... 100 m
Multimode fiber (MM) 50/125 µmcf. Gigabit and Fast Ethernet SFP modules
Multimode fiber (MM) 62.5/125 µmcf. Gigabit and Fast Ethernet SFP modules
Single mode fiber (SM) 9/125 µmcf. Gigabit and Fast Ethernet SFP modules
Single mode fiber (LH) 9/125 µm (long haul transceiver)cf. Gigabit and Fast Ethernet SFP modules

Network size - cascadibility

Line - / star topologyany
Ring structure (HIPER-Ring) quantity switchesup to 10 ms (10 switches), up to 30 ms (50 switches), up to 40 ms (100 switches), up to 60 ms (200 switches)

Power requirements

Operating voltagepower supply 1: 24/36/48 V DC, power supply 2: 24/36/48 V DC
Current consumption at 24 V DCpower supply 1: 1080 mA max., if all ports are equipped with SFP; power supply 2: 1080 mA max., if all ports are equipped with SFP
Current consumption at 230 V ACpower supply 1: n/a; power supply 2: n/a
Power output in Btu (IT) h90 max (350 PoE option)

Software

ManagementDual Software Image Support; TFTP; LLDP (802.1AB); LLDP-MED; SSHv1; SSHv2; V.24; HTTP; HTTPS; Traps; SNMP v1/v2/v3; Telnet
DiagnosticsManagement Address Conflict Detection; Address Relearn Detection; MAC Notification; Signal Contact; Device Status Indication; TCPDump; LEDs; Syslog; Port Monitoring with Auto-Disable; Link Flap Detection; Overload Detection; Duplex Mismatch Detection; RMON (1,2,3,9); Port Mirroring 1:1; Port Mirroring 8:1; Port Mirroring N:1; System Information; Self-Tests on Cold Start; Copper Cable Test; SFP Management; Configuration Check Dialog; Switch Dump; Link Speed and Duplex Monitoring
ConfigurationAutoConfiguration Adapter ACA11 Limited Support (RS20/30/40, MS20/30); Automatic Configuration Undo (roll-back); Configuration Fingerprint; BOOTP/DHCP Client with Auto-Configuration; DHCP Server: per Port; DHCP Server: Pools per VLAN; DHCP Server: Option 43; AutoConfiguration Adapter ACA21/22 (USB); HiDiscovery; DHCP Relay with Option 82; Command Line Interface (CLI); CLI Scripting; Full-featured MIB Support; Web-based Management; Context-sensitive Help
RoutingFull Wire-Speed Routing;Port-based Router Interfaces;VLAN-based Router Interfaces;Net-directed Broadcasts;OSPFv2;RIP v1/v2;ICMP Router Discovery (IRDP);Equal Cost Multiple Path (ECMP);Proxy ARP;Static Route Tracking
SecurityIP-based Port Security; MAC-based Port Security; Port-based Access Control with 802.1X; Guest/unauthenticated VLAN; RADIUS VLAN Assignment; Multi-Client Authentication per Port; MAC Authentication Bypass; Ingress MAC-based ACL; Ingress IPv4-based ACL; Ingress VLAN-based ACL; Access to Management restricted by VLAN; HTTPS Certificate Management; Restricted Management Access; Appropriate Use Banner; SNMP Logging; Local User Management; Remote Authentication via RADIUS
Redundancy functionsAdvanced Ring Configuration for MRP; HIPER-Ring (Manager); HIPER-Ring (Ring Switch); Fast HIPER-Ring; Link Aggregation with LACP; Media Redundancy Protocol (MRP) (IEC62439-2); Redundant Network Coupling; Sub Ring Manager; RSTP 802.1D-2004 (IEC62439-1); MSTP (802.1Q); RSTP Guards; RSTP over MRP; VRRP; VRRP Tracking; HiVRRP (VRRP enhancements)
FilterPoE (802.3AF); PoE+ (802.3AT); Manual Cable Crossing
Industrial ProfilesEtherNet/IP Protocol; IEC61850 Protocol (MMS Server, Switch Model); PROFINET IO Protocol
Time synchronisationDual Software Image Support; TFTP; LLDP (802.1AB); LLDP-MED; SSHv1; SSHv2; V.24; HTTP; HTTPS; Traps; SNMP v1/v2/v3; Telnet
SwitchingTraffic Shaping; Disable Learning (hub functionality); Independent VLAN Learning; Fast Aging; Static Unicast/Multicast Address Entries; QoS / Port Prioritization (802.1D/p); TOS/DSCP Prioritization; CoS Queue Management; Egress Broadcast Limiter per Port; Flow Control (802.3X); Jumbo Frames; VLAN (802.1Q); Protocol-based VLAN; GARP VLAN Registration Protocol (GVRP); Double VLAN Tagging (QinQ); Voice VLAN; GARP Multicast Registration Protocol (GMRP); IGMP Snooping/Querier (v1/v2/v3)

Ambient conditions

Operating temperature0 ºC ... 60 ºC
Storage/transport temperature-40 ºC ... 85 ºC
Relative humidity (non-condensing)5 % ... 95 %
MTBF13.6 years (MIL-HDBK-217F)
Protective paint on PCBNo

Mechanical construction

Dimensions (W x H x D)445 mm x 44 mm x 345 mm
Mounting19" control cabinet
Weight5600 g
Protection classIP30

Mechanical stability

IEC 60068-2-27 shock15 g, 11 ms duration, 18 shocks
IEC 60068-2-6 vibration1 mm, 2 Hz-13.2 Hz, 90 min.; 0.7g, 13.2 Hz-100 Hz, 90 min.; 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min.; 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min.

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD)8 kV contact discharge, 15 kV air discharge
EN 61000-4-3 electromagnetic field35 V/m (80-2700 MHz); 1 kHz, 80% AM
EN 61000-4-4 fast transients (burst)4 kV power line, 4 kV data line
EN 61000-4-5 surge voltagepower line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line, IEEE1613: power line 5 kV (line/earth)
EN 61000-4-16 mains frequency voltage30 V, 50 Hz continous; 300 V, 50 Hz 1 s

EMC emitted immunity

FCC CFR47 Part 15FCC 47 CFR Part 15 Class A
EN 55022EN 55022 Class A

Approvals

Safety of industrial control equipmentcUL 508
Hazardous locationsISA 12.12.01 Class 1 Div. 2
ShipbuildingGermanischer Lloyd
Railway normEN 50121-4, EN50155 (pending), NEMA TS
SubstationIEC 61850-3, IEEE 1613
TransportationEN 50121-4, EN50155 (pending), NEMA TS
